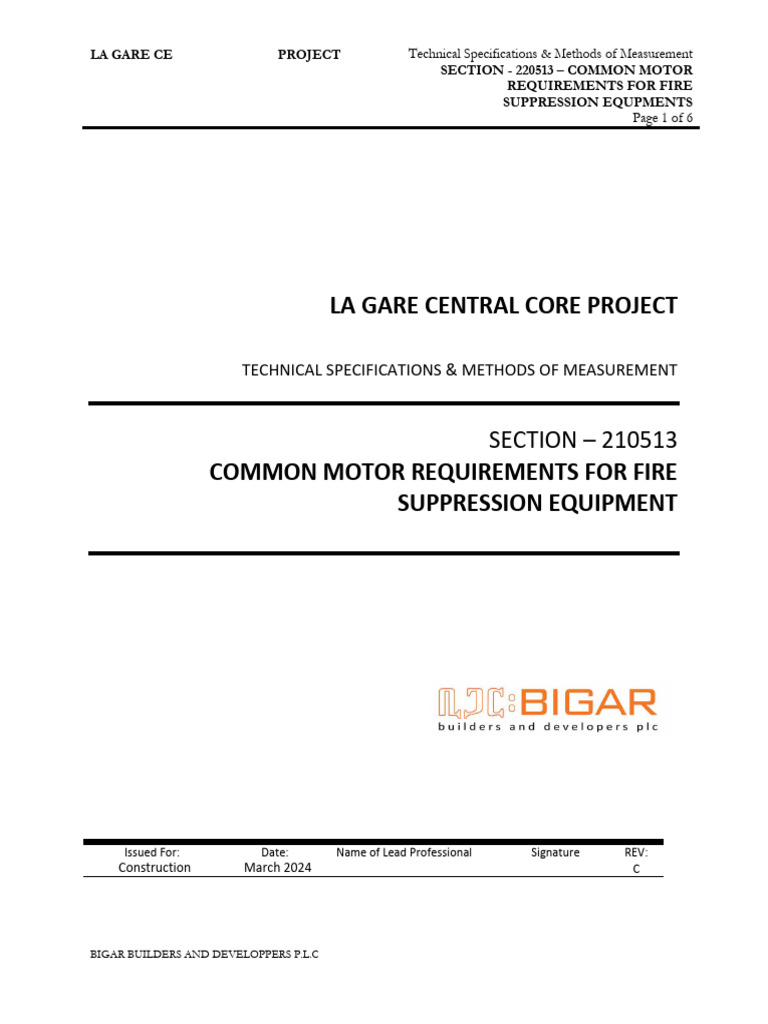

LA GARE CENTRAL CORE PROJECT
TECHNICAL SPECIFICATIONS & METHODS OF MEASUREMENT
SECTION – 210513
COMMON MOTOR REQUIREMENTS FOR FIRE
SUPPRESSION EQUIPMENT
Issued For: Date: Name of Lead Professional Signature REV:
Construction March 2024 C
BIGAR BUILDERS AND DEVELOPPERS P.L.C
LA GARE CENTARAL CORE PROJECT Technical Specifications & Methods of Measurement
SECTION - 220513 – COMMON MOTOR
REQUIREMENTS FOR FIRE
SUPPRESSION EQUPMENTS
Page 2 of 6
TABLE OF CONTENTS
PART 1 - GENERAL .................................................................................................................................................. 3
1.1 RELATED DOCUMENTS ....................................................................................................................................3
1.2 SUMMARY .......................................................................................................................................................3
1.3 COORDINATION ...............................................................................................................................................3
PART 2 - PRODUCTS ............................................................................................................................................... 3
2.1 GENERAL MOTOR REQUIREMENTS..................................................................................................................3
2.2 MOTOR CHARACTERISTICS ..............................................................................................................................4
2.3 POLYPHASE MOTORS .......................................................................................................................................4
2.4 POLYPHASE MOTORS WITH ADDITIONAL REQUIREMENTS, ALL ADDITIONAL REQUIREMENTS SHALL FULFILL THE
STANDARD REQUIREMENTS GIVEN BELOW OR OTHER APPROVED EQUIVALENT STANDARDS. ........................................................... 5
2.5 SINGLE-PHASE MOTORS ..................................................................................................................................5
PART 3 - EXECUTION (NOT APPLICABLE) ................................................................................................................ 6
BIGAR BUILDERS AND DEVELOPPERS P.L.C
LA GARE CENTARAL CORE PROJECT Technical Specifications & Methods of Measurement
SECTION - 220518 - ESCUTCHEONS FOR
PLUMBING PIPING
Page 3 of 6
SECTION - 210513
COMMON MOTOR REQUIREMENTS FOR FIRE SUPPRESSION EQUIPMENT
PART 1 - GENERAL
1.1 RELATED DOCUMENTS
A. Drawings and general provisions of the Contract, including General and Supplementary
Conditions and Division 01 Specification Sections, apply to this Section.
1.2 SUMMARY
A. Section includes general requirements for single-phase and poly phase, general-
purpose, horizontal, small and medium, squirrel-cage induction motors for use on ac
power systems up to 600 V and installed at equipment manufacturer's factory or
shipped separately by equipment manufacturer for field installation.
1.3 COORDINATION
A. Coordinate features of motors, installed units, and accessory devices to be compatible
with the following:
1. Motor controllers.
2. Torque, speed, and horsepower requirements of the load.
3. Ratings and characteristics of supply circuit and required control sequence.
4. Ambient and environmental conditions of installation location.
PART 2 - PRODUCTS
2.1 GENERAL MOTOR REQUIREMENTS
A. Comply with NEMA MG 1 or other equivalent approved.
B. Comply with IEEE 841 or other equivalent approved for severe-duty motors.
BIGAR BUILDERS AND DEVELOPPERS P.L.C
LA GARE CENTARAL CORE PROJECT Technical Specifications & Methods of Measurement
SECTION - 220518 - ESCUTCHEONS FOR
PLUMBING PIPING
Page 4 of 6
2.2 MOTOR CHARACTERISTICS
A. Duty: Continuous duty at ambient temperature of 29 deg C and at altitude of 2400 m
above sea level.
B. Capacity and Torque Characteristics: Sufficient to start, accelerate, and operate
connected loads at designated speeds, at installed altitude and environment, with
indicated operating sequence, and without exceeding nameplate ratings or
considering service factor.
2.3 POLYPHASE MOTORS
A. Description: NEMA MG 1, Design B or other equivalent approved medium induction
motor.
B. Efficiency: Energy efficient, as defined in NEMA MG 1or other approved equivalent.
C. Service Factor: 1.15.
D. Multispeed Motors: Variable torque.
1. For motors with 2:1 speed ratio, consequent pole, single winding.
2. For motors with other than 2:1 speed ratio, separate winding for each speed.
E. Multispeed Motors: Separate winding for each speed.
F. Rotor: Random-wound, squirrel cage.
G. Bearings: Re-greaseable, shielded, antifriction ball bearings suitable for radial and
thrust loading.
H. Temperature Rise: Match insulation rating.
I. Insulation: Class F.
J. Code Letter Designation:
1. Motors 12Kw and Larger: NEMA starting Code F or Code G or approved
equivalent.
2. Motors smaller than 12Kw: Manufacturer's standard starting characteristic.
BIGAR BUILDERS AND DEVELOPPERS P.L.C
LA GARE CENTARAL CORE PROJECT Technical Specifications & Methods of Measurement
SECTION - 220518 - ESCUTCHEONS FOR
PLUMBING PIPING
Page 5 of 6
K. Enclosure Material: Cast iron for motor frame sizes 324T and larger; rolled steel for
motor frame sizes smaller than 324T.
2.4 POLYPHASE MOTORS WITH ADDITIONAL REQUIREMENTS, all additional requirements
shall fulfill the standard requirements given below or other approved equivalent
standards.
A. Motors Used with Reduced-Voltage and Multispeed Controllers: Match wiring
connection requirements for controller with required motor leads. Provide terminals in
motor terminal box, suited to control method.
B. Motors Used with Variable Frequency Controllers: Ratings, characteristics, and
features coordinated with and approved by controller manufacturer.
1. Windings: Copper magnet wire with moisture-resistant insulation varnish,
designed and tested to resist transient spikes, high frequencies, and short time
rise pulses produced by pulse-width modulated inverters.
2. Energy- and Premium-Efficient Motors: Class B temperature rise; Class F
insulation.
3. Inverter-Duty Motors: Class F temperature rise; Class H insulation.
4. Thermal Protection: Comply with NEMA MG 1 requirements for thermally
protected motors.
C. Severe-Duty Motors: Comply with IEEE 841or other equivalent approved, with 1.15
minimum service factors.
2.5 SINGLE-PHASE MOTORS
A. Motors larger than 1/20 hp shall be one of the following, to suit starting torque and
requirements of specific motor application:
1. Permanent-split capacitor.
2. Split phase.
3. Capacitor start, inductor run.
4. Capacitor start, capacitor run.
B. Multispeed Motors: Variable-torque, permanent-split-capacitor type.
C. Bearings: Pre-lubricated, antifriction ball bearings or sleeve bearings suitable for radial
and thrust loading.
D. Motors 40watt and Smaller: Shaded-pole type.
BIGAR BUILDERS AND DEVELOPPERS P.L.C
LA GARE CENTARAL CORE PROJECT Technical Specifications & Methods of Measurement
SECTION - 220518 - ESCUTCHEONS FOR
PLUMBING PIPING
Page 6 of 6
E. Thermal Protection: Internal protection to automatically open power supply circuit to
motor when winding temperature exceeds a safe value calibrated to temperature
rating of motor insulation. Thermal-protection device shall automatically reset when
motor temperature returns to normal range.
PART 3 - EXECUTION (Not Applicable)
END OF SECTION 210513
