Configure SLB in CLI:

1. Define the real servers
slb real <real service type> <real_name> <BackEnd Server IP> <PORT> <Optional, Maximum connections> <Health Check type> <hc_up> <hc_down>

slb real http "v1" 10.7.8.105 80 1000 http 3 3

2. Define a group load balancing method.
slb group method <group_name> <slb algorithm>
slb group method "grp" rr

3. Add real servers to the group.
slb group member < group_name > < real_name > <optional, Weight >

slb group member "grp" "v1" 1

4. Define a Virtual IP to listen for requests.
slb virtual < virtual service type > < virtual service name > < virtual service IP > < virtual service Port >

slb virtual http "www.test.com" 64.233.169.104 80

5. Bind the group balancing method to the Virtual IP.
slb policy default < Virtual Service name > < group_name >

slb policy default "www.test.com" "grp"

Configure webui in Array OS version 6.4 or later.

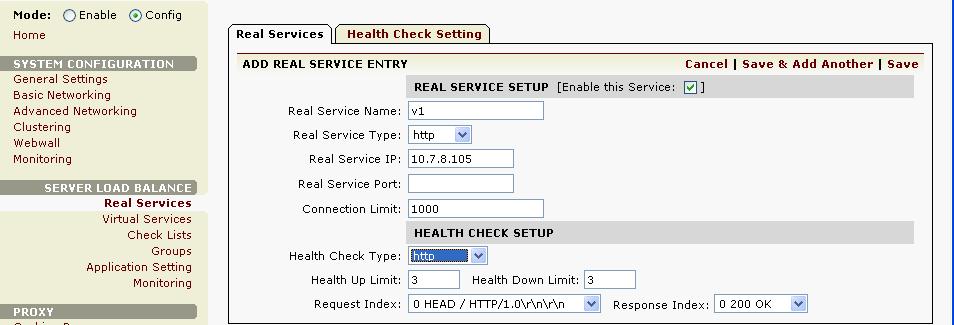

1. Define the real servers.

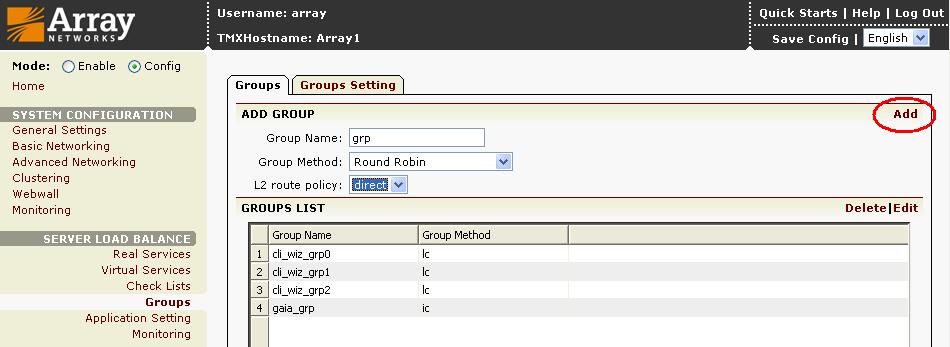

2. Define a group load balancing method.

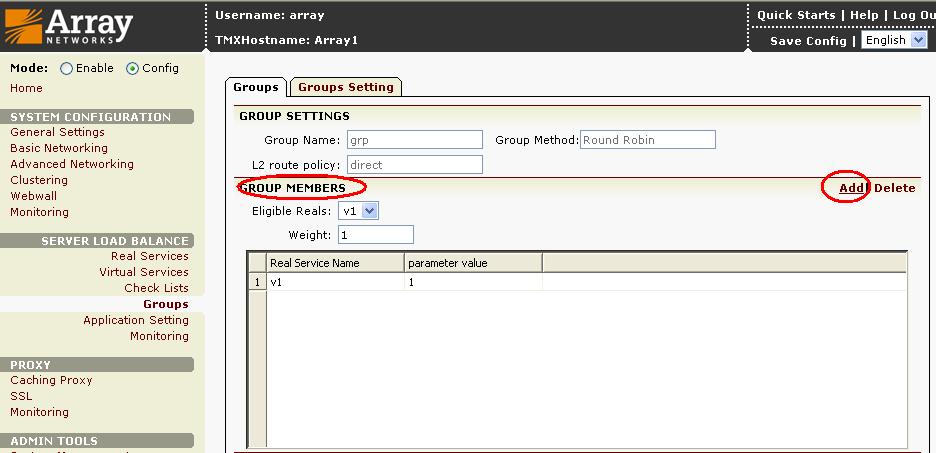

3. Add real servers to the group:
   double click on group name "grp" to configure member in a group

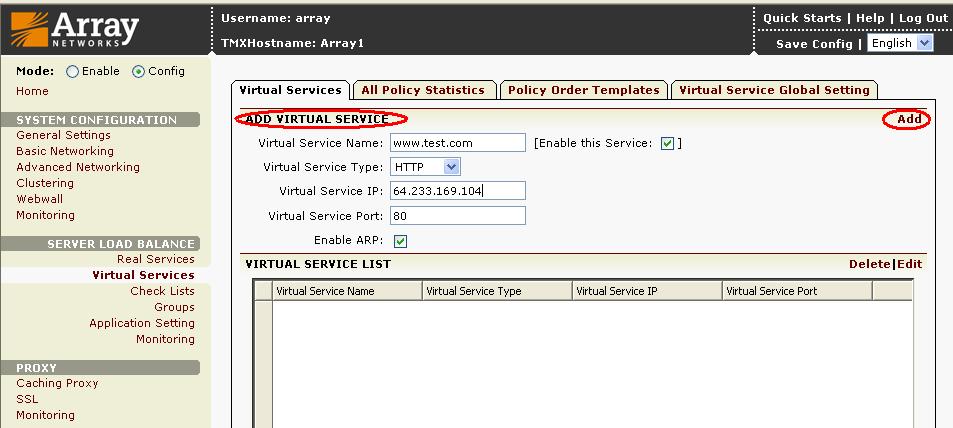

4. Define a Virtual IP to listen for requests.

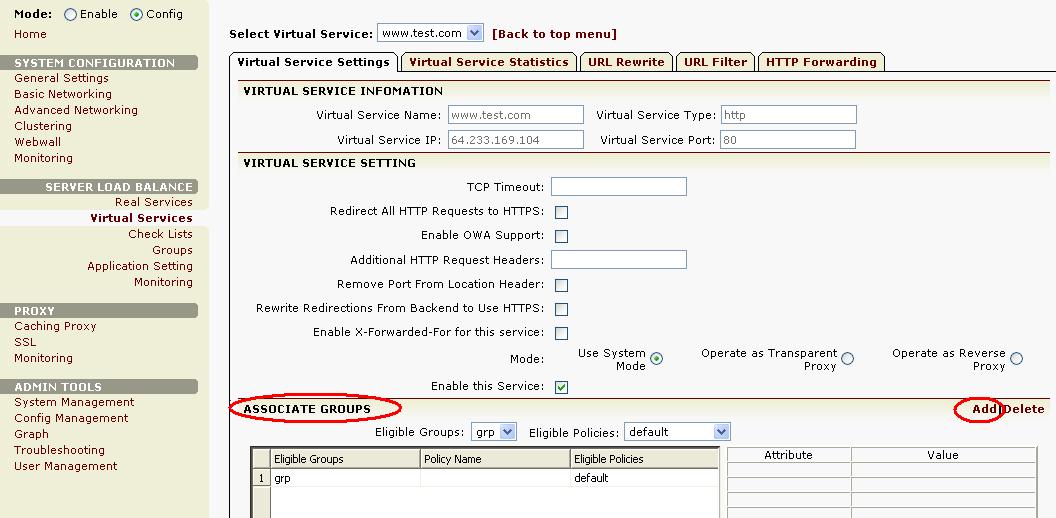

5. Bind the group balancing method to the Virtual IP.
