User Interface Development with jQuery

User Interface
Development with jQuery

Colin Clark, Fluid Project Technical Lead, Adaptive Technology Resource Centre
Justin Obara, Fluid Infusion Product Manager, Adaptive Technology Resource Centre

Topics We’ll Cover
• What is jQuery?

• JavaScript 101: A refresher course

• The jQuery Way

• Finding things

• Attributes, classes, and more

• Events

• Accessibility and jQuery

• DOM manipulation

• AJAX

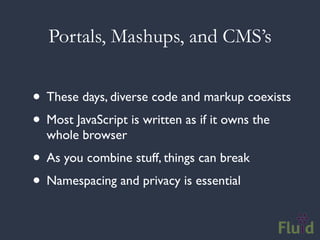

• Portal friendliness, application frameworks, and Fluid Infusion

Check out the Sample Code
http://source.ﬂuidproject.org/svn/scratchpad/jquery-workshop/trunk/

Things You’ll Need

• Your favourite editor
• Aptana or Eclipse?

• A sane browser with a good debugger
• Firefox + Firebug

• A Servlet container
• Tomcat or Jetty, if you want to try with live tweets

Challenges of the Client-Side

• Browser inconsistencies and bugs


• Complexity of the DOM


• Handling events and asynchrony


• Communicating with the server

Toolkits can help!
• Browser Abstraction

Toolkits can help!
• Browser abstraction
• A simple, uniﬁed API for the DOM

Toolkits can help!
• Easy, functional events system

Toolkits can help!
• Easy, functional events system
• Built-in AJAX, XML, and JSON
support

Find something...

and do something
with it

doing something without a toolkit

function stripeListElements() {

// get the items from the list

var myItems = document.getElementsByTagName("li");

// skip line 0 as it's the header row

for(var i = 0; i < myItems.length; i++) {

if ((i % 2) === 0) {

myItems[i].className = "even";

}

}
}

doing something with jQuery

jQuery("li");


jQuery("li:even");


jQuery("li:even").addClass("striped");

Types of JavaScript Tools

• Foundational toolkits
• Widget libraries
• Application frameworks
... compare and contrast

Foundational toolkits

• Totally presentation focused
• DOM manipulation
• Event binding
jQuery
• Ajax Prototype
Dojo core

Widget Libraries

• Reusable user interface widgets
• Drag & Drop
• Tabs
• Sliders
jQuery UI
• Accordions Ext
Scriptaculous

Application frameworks

• Model notiﬁcations “something changed here”
• Views to help keep your presentational code clean
• Data binding to sync the display with your model
SproutCore
Dojo/Dijit/
Dojox
Cappuccino

jQuery in a Nutshell
• Everything you need for:
• Finding things
• Styling things
• Manipulating things
• Attaching events
• Making AJAX Requests
• Pretty low-level: you’ll need more

jQuery Philosophy

• Unobtrusive
• Separation of presentation, structure, logic
• Lightweight
• Browser normalization, DOM, AJAX. That’s it
• Functional, not object oriented

JavaScript is Different

• Everything is an object
• Has an extremely loose type system
• No classes
• Functions are ﬁrst class
• Some annoying bugs

Defining Variables

var mango = "yum";

mango = 12345;

mango = false;

Defining Variables

• If you omit var, it will be deﬁned as a global variable.

• This is extremely dangerous; JavaScript won't warn you!

rottenTomato = "gross!"; // This is global

Truthy and Falsey
• JavaScript automatically coerces types
if (cat) {
cat.meow();
}

• Unlike static language: “shades” of true and false
• Use with care

Falsey Values
false
null
undeﬁned
""
0 (zero)
NaN

• Everything else is truthy. Careful...
-1,"false","0" are all true

Equivalent vs. Equal
Comparisons are coercive:

1 == "1" // true

0 == false // true

Non-coercive comparison:

0 === false // false

1 !== "1" // true

1 === Number("1") // true

Objects Are Loose Containers

• Objects are just maps

• Keys can be any string, values can be anything

• Two different ways to access members:
basketOfFruit.kiwis; // dot notation
basketOfFruit["ﬁgs"]; // subscript notation

• You can add new members to any object at any time

No Classes
• JavaScript does not have a class system
• Methods are just properties in a container:
• pass them around
• modify them
• delete them
• Inheritance is prototypal, but this is broken

Objects Are Modifiable
var basketOfFruit = {
pears: “bartlett”,
oranges: “mandarin”
};

// New property
basketOfFruit.apples = "macintosh";

// New method
basketOfFruit.eat = function () {

return “tasty”;
};

First Class Functions

1. Functions are real objects.
2. Functions are data: assign, pass, return them
3. Functions remember their scope and carry state

A Simple Closure
var addNumber = function (a) {
// This function will remember the value of a

return function (b) {

return a + b;

};
};

var addOne = addNumber(1); // result is an “add 1” Function
addOne(5); // Result is 6
addOne(41); // Result is 42

A Realistic Example
var tweetBox = $(“#statusTextField”);

function createTweetHandler () {
var user = {
id: “12345”,
lastTweet: null
};

return function (evt) {
user.lastTweet = tweetBox.val();
}
}

tweetBox.bind(createTweetHandler());

The Good Parts
JSLint: a static analyzer for JavaScript

A shape for your code
// Your namespace is the only global variable.
var namespace = namespace || {};

// A private space, with a helpful alias to jQuery
(function ($) {

// To make something available, add it to your namespace.
namespace.myFunction = function () {

};

})(jQuery);

jQuery === $

Constructor:

$(selectorString | Element | Array | jQuery);

Returns:

A jQuery instance.

Examples

// Selector
var allListItems = $(“li”);

// DOM Element
var theWholeDocument = $(document);

What’s a jQuery?

• A wrapper for one or many elements
• A real object with useful methods
• A better API than the raw DOM
• Context-oriented and chainable:

$(“li”).addClass(“selected”).attr(“tabindex”, “-1”).text(“Hello!”);

Basic jQuery Methods
var allListItems = $(“li”);

// Get the id attribute
allListItems.attr(“id”);

// Add a CSS class name.
allListItems.addClass(“stripey”);

// Get all the children
allListItems.children();

// Find items scoped within another jQuery
$(“a”, allListItems);

A Unified API for One or Many

• Most DOM code requires a lot of looping:
var myItems = document.getElementsByTagName("li");
for (var i = 0; i < myItems.length; i++) {
myItems[i].className = “foo”;
}

• jQuery treats sets the same as single elements:
$("li").addClass(“foo”);

• Bottom line: no iteration means way less code (and
it’s portable)

One or many?

// Returns the id attribute of the ﬁrst element.
$(“li”).attr(“id”);

// Sets the tabindex attribute of all elements.
$(“li”).attr(“tabindex”, “-1”);
<li tabindex=”-1”>foo</li>

// Adds the class name to all elements.
$(“li”).addClass(“highlighted”);

// Returns true if at least one has this class
$(“li”).hasClass(“highlighted”);

Accessing Members
// Get the element at a speciﬁc position, as a jQuery
$(“li”).eq(0);

// Get the element at a speciﬁc position,
// as a pure DOM element
$(“li”)[0];

// Loop through each element in a jQuery
$(“li”).each(function (index, item) {
$(item).addClass(“highlighted”);
});

What’s a Selector?

• Selectors are speciﬁed by a string
• A notation for identifying elements in the
DOM
• The same thing you use when you’re
writing CSS

Types of Selectors
• Element selectors

“div” “span” “ul” “li” “body”

• id selectors

“#ﬂutter-friends” “#friends-error-dialog”

• Class name selectors
“.invisible” “.ﬂutter-status-panel”

More Selectors
• Descendent selectors:
ancestor descendent
“.flutter-status-panel textarea”
“.flutter-status-panel.active”

• Child selectors:
ancestor child child
“#friends>li>img”

• Pseudo selectors:
“:first” “:even” “:hidden” “:contains(‘John Resig’)”
“:not(#flutter-friends-template)”

All the details...

http://api.jquery.com/category/selectors

Manipulating Attributes
var friends = $(“#friends li”);

// Get the id attribute
friends.attr(“id”);

// Set the id attribute
aFriend.attr(“id”, “123456789”);

// attr() also provides normalization
friends.attr(“tabindex”, -1);

Manipulating Classes

// Add a class name
friends.addClass(“flutter-hidden”);

// Remove a class name
friends.removeClass(“flutter-hidden”);

// Toggle a class name on or off
friends.toggleClass(“flutter-hidden”);

Directly Manipulating Styles


// Get the element’s computed border-color style
friends.css(“border-color”);

// Set the element’s style
friends.css(“border-color”, “red”);
friends.css(“border”, “5px”);

// Get and set height and width
settingsPanel.height();
settingsPanel.width(400);

Is the document ready?
• HTML gets parsed by the browser linearly

• Head ﬁrst, then body, etc.

• So all your <head> scripts will execute immediately

<head>
<script>
console.log(“Number of <li>s on the page: “ +
$(“li”).length);
</script>
</head>

• How do you know when the page is loaded?

Script Blocks
<body>

<ul>
<li>Fish</li>
<li>Penguins</li>
<li>Kings</li>
</ul>

<script type=”text/javascript”>
</script>

</body>

$(document).ready(fn)

$(document).ready(function () {
// This is the earliest point at which
// the whole document is ready.
});

Finding Things
• Find the following things:
• The friends list

• All list items in every list on the page

• The list items inside the friends list

• Everything with the class fl-centered

• The first form element on the page

• The last item in the friends list

• The label for the username text field

• Give each thing a different background colour (there is
a style sheet you can use if you’re not hot on CSS)

Types of Browser Events
• Mouse
• click() when the mouse button is clicked

• mouseover() when the cursor is over an element

• Keyboard events:
• keydown() as soon as a key is pressed down

• keyup() when the key is released

• keypress() can be buggy and inconsistent

• focus() when an element is clicked or focused with the keyboard

• blur() when focus leaves the event

jQuery and Events

• Events vary wildly across browsers

• Netscape vs. IE vs. W3C: they’re all different

• jQuery normalizes all the standard browser events

• Also lets you deﬁne your own custom events

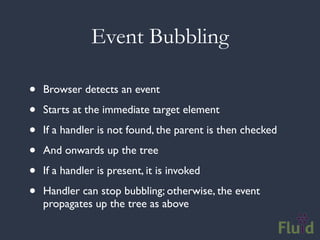

Event Bubbling

• Browser detects an event

• Starts at the immediate target element

• If a handler is not found, the parent is then checked

• And onwards up the tree

• If a handler is present, it is invoked

• Handler can stop bubbling; otherwise, the event
propagates up the tree as above

Binding Events

// The generic way
$(“li”).bind(“click”, function (event) {
alert(“You clicked me!”);
});

// Event binding shortcut
$(“li”).click(function (event) {
alert(“You clicked me!”);
});

Event Handlers

• The event object provides more information about the
event that occurred
• points to the element on which the event listener was
this
bound. Be careful!

• Event handlers always deal with pure elements, not jQuery
instances (this and event.target)

Events: this vs. target

var friends = $(“#friends”);
friends.click(function (event) {
// this === $(“#friends”);
// evt.target === $(“#friends li”)[3]
});

Default Actions

• When links are clicked, a new page loads

• When an arrow key is pressed, the browser scrolls

• When Enter is pressed in a form, it submits

• You can prevent the browser’s default action:

$(“a”).bind(“click”, function (event) {
event.preventDefault();
});

Stopping Propagation
• By default, events will propagate up the tree after your
handler runs

• Stopping propagation:

$(“a”).click(function (event) {
event.stopPropagation();
});

• To swallow propagation and the default action:
$(“a”).click(function (event) {
return false;
});

The Event Object

{
altKey: boolean,
ctrlKey: boolean,
metaKey: boolean,
shiftKey: boolean, // Were these modiﬁer keys depressed?
keyCode: Number, // The numeric keycode for key events
which: Number, // Keycode or mouse button code
pageX: Number, // Horizontal coordinate relative to page
pageY: Number, // Vertical coordinate relative to page
relatedTarget: Element, // Element left or entered
screenX: Number, // Horizontal coordinate relative to screen
screenY: Number, // Vertical coordinate relative to screen
target: Element, // The element for which the event was triggered
type: String // The type of event that occurred (eg. “click”)
}

Event Delegation
• Often you’ve got a lot of elements on page (e.g. Twitter friends)

• Each shares the same event behaviour

• In this case, bind your event to their container:

<ul id="friends">
<li id="19539154"> // This will be slow, because it binds an
   <img /> // event on each item in the list.
Darcie Clark $(“#friends li”).click(function (event) {
</li> showTweetsForFriend(this);
<li id="19539154"> }):
   <img />
John Resig // Bind the event to the container, and let
</li> // it bubble up. Way faster.
<li id="19539154"> var friends = $(“#friends”);
   <img /> friends.delegate(“li”, “click”, function (evt) {
Justin Obara showTweetsForFriend(this);
</li> });
</ul>

Removing Events

// Remove all event listeners.
$(“li”).unbind();

// Remove all click event listeners.
$(“li”).unbind(“click”);

// Remove a speciﬁc listener.
var myListener = function (event) {...};
$(“li”).bind(myListener);
$(“li”).unbind(myListener);

// Remove a delegate-based event.
$(“#friends”).undelegate(“li”, “click”);

One-off Events

// This event will only ever fire once.
$(“li”).one(“click”, function (event) {
alert(“You’ll only see me once.”);
});

// A more awkward, verbose version:
var fireOnce = function (event) { ... };
$(“li”).bind(“click”, function (event) {
fireOnce();
$(“li”).unbind(fireOnce);
});

Binding Events

• Bind click handlers to each of the friend <li> elements.

• Your click handler should invoke a selectFriend() function
with the friend that was clicked.

• The selectFriend() function should use jQuery to adjust
the CSS classes of the friend elements so that the clicked
element has the flutter-active style

Getting/Setting Element Values

// Get a value from a form element.
$(“#status”).val();

// Set a value on a form element.
$(“#status”).val(“Giving a presentation a Jasig.”);

// Getting the text of an element.
$(“#status”).text();

// Setting the text of an element.
$(“#status”).text(“John Resig”);

DOM Manipulation

• The traditional DOM provides methods for creating new
elements and adding them to existing elements

• Can also be quite slow

• IE implemented the now ad-hoc standard innerHTML, which
was faster

• jQuery provides a great API for DOM manipulation, as well
as cross-browser manipulation

• Ultimately, it still uses the DOM APIs underneath: still slow

Manipulating the DOM
// Create a new element.
var myList = $(“<ul></ul>”);

// Appending elements to the end of a container.
var otherListItems = $(“li”);
myList.append(otherListItems);

// Same result.
otherListItems.appendTo(myList);

// Remove an element from the DOM entirely.
// Conveniently, this returns the item you just removed
$(“#ﬂutter-friend-template).remove();

// Remove all children from a container.
myList.empty();

More manipulation: copying

// Clone an element
$(“#ﬂutter-friend-template”).clone();

// Clone an element, along with all its event handlers
$(“#ﬂutter-friend-template”).clone(true);

Injecting Lots of Stuff
(slow)

// Create a new element.
var myList = $(“<ul></ul>”);
var john = myList.append(“<li></<li>”);
john.text(“John Resig”);
john.attr(“tabindex”, “-1”);

var paul = myList.append(“<li></li>”);
paul.text(“Paul McCartney”);

Injecting Lots of Elements at Once

var friends = [{
id: “12345”,
name: “John Resig”
}];

// The ugly, error-prone string concat way
$(“<li id=”” + friends[0].id + “” tabindex=”-1”>” +
friends[0].name + “</li>”).click(function () {
showTweetsForFriends()
});

Quick Element Construction

var friends = [{
id: “12345”,
name: “John Resig”
}];

// The speedy, nice way.
$(“<li>”, {
text: friends[0].name,
id: friends[0].id,
tabindex: “-1”,
click: function () {
showTweetsForFriend(this);
}
});

DOM Manipulation Advice

• Try to use CSS instead of DOM manipulation where
possible (e.g. hiding/showing elements, etc.)

• DOM manipulation can be very costly

• jQuery’s API is great, but it isn’t magic

• Avoid building up elements one at a time

• Injecting whole blocks of HTML at once:

myContainer.html(“<ul><li>Colin</li><li>Antranig</li><li>Jess</li></ul>”);

Manipulating the DOM
• Bind a key handler to the entry field

• The key handler should:
i) listen for the Enter key ($.ui.keyCode.ENTER)
ii) clone the template node for a new tweet
iii) fill in the node with the text entered by the user
iv) add the node to the twitter list
v) make the new node visible
vi) clear the entry field

A New Definition

• Accessibility is the ability of the system to
accommodate the needs of the user
• Disability is the mismatch between the user
and the interface provided
• We all experience disability
• Accessible software = better software

Assistive Technologies
• Present and control the user interface in
different ways
• Not just screen readers!
• Use built-in operating system APIs to
understand the user interface

Screen readers
Screen magniﬁers
On-screen keyboards

DHTML: A New Can of Worms

• Shift from documents to applications
• Familiar a11y techniques aren’t enough
• Most DHTML is completely inaccessible
• New techniques are still being ﬁgured out

The Problem

• Custom widgets often look, but don’t act,
like their counterparts on the desktop
• HTML provides only simple semantics
• Not enough information for ATs
• Dynamic updates require new design
strategies to be accessible

The Solution

• Describe user interfaces with ARIA
• Add consistent keyboard controls
• Provide ﬂexible styling and presentation

Supporting Assistive Technology

Opaque Markup
// These are tabs. How would you know?
<ol>
<li><a href=”#cats”>Cats</a></li>
<li><a href=”#dogs”>Dogs</a></li>
<li><a href=”#gators”>Gators</a></li>
</ol>
<div>
<div id=”cats”>Cats meow.</div>
<div id=”dogs”>Dogs bark.</div>
<div id=”gators”>Gators bite.</div>
</div>

ARIA

• Accessible Rich Internet Applications
• W3C speciﬁcation in the works
• Fills the semantic gaps in HTML
• Roles, states, and properties
• Live regions

Roles, States, Properties
• Roles describe widgets not present in HTML 4
• slider, menubar, tab, dialog
• Properties describe characteristics:
• draggable, hasPopup, required

• States describe what’s happening:
• busy, disabled, selected, hidden

Using ARIA
// Now *these* are Tabs!
<ol id=”animalTabs” role=”tablist” tabindex=”0”>


<li role=”tab”><a href=”#” tabindex=”-1”>Cats</a></li>
<li role=”tab”><a href=”#” tabindex=”-1”>Dogs</a></li>
<li role=”tab”><a href=”#” tabindex=”-1”>Gators</a></li>
</ol>
<div id=”panels”>
<div role=”tabpanel” aria-labelledby=”cats”>Cats meow.</div>
<div role=”tabpanel” aria-labelledby=”dogs”>Dogs bark.</div>
<div role=”tabpanel” aria-labelledby=”gators”>Gators bite.</div>
</div>

Adding ARIA in Code
// Identify the container as a list of tabs.
tabContainer.attr("role", "tablist");

// Give each tab the "tab" role.
tabs.attr("role", "tab");

// Give each panel the appropriate role, panels.attr("role",
"tabpanel");
panels.each(function (idx, panel) {
var tabForPanel = that.tabs.eq(idx);
// Relate the panel to the tab that labels it.
$(panel).attr("aria-labelledby", tabForPanel[0].id);
});

Keyboard Navigation

• Everything that works with the mouse
should work with the keyboard
• ... but not always in the same way
• Support familiar conventions
http://dev.aol.com/dhtml_style_guide

Keyboard Conventions
• Tab key focuses the control or widget
• Arrow keys select an item
• Enter or Spacebar activate an item

• Tab is handled by the browser. For the rest,
you need to write code. A lot of code.

Tabindex examples

<ol id=”animalTabs” tabindex=”0”>


<li id=”tab1”>
<a href=”#cats” tabindex=”-1”>Cats</a>
</li>
<li id=”tab2”>
<a href=”#cats” tabindex=”-1”>Dogs</a>
</li>
<li id=”tab3”>
<a href=”#cats” tabindex=”-1”>Alligators</a>
</li>
</ol>

Making Things Tabbable
• Tabindex varies subtly across browsers
• jquery.attr() normalizes it as of 1.3
• For all the gory details:
http://ﬂuidproject.org/blog/2008/01/09/
getting-setting-and-removing-tabindex-values-with-
javascript/

// Make the tablist accessible with the Tab key.
tabContainer.attr("tabindex", "0");
// And take the anchors out of the Tab order.
$(“a”, tabs).attr("tabindex", "-1");

Adding the Arrow Keys
// Make each tab accessible with the left and right arrow keys.
tabContainer.ﬂuid("selectable", {
selectableSelector: that.options.selectors.tabs,
direction: ﬂuid.a11y.orientation.HORIZONTAL,
onSelect: function (tab) {
$(tab).addClass(that.options.styles.highlighted);
},

onUnselect: function (tab) {
$(tab).removeClass(that.options.styles.highlighted);
}
});

Making Them Activatable

// Make each tab activatable with Spacebar and Enter.
tabs.ﬂuid("activatable", function (evt) {
// Your handler code here. Maybe the same as .click()?
});

Documentation

• Tutorial:
http://wiki.fluidproject.org/display/fluid/Keyboard+Accessibility
+Tutorial

• API Reference:
http://wiki.fluidproject.org/display/fluid/Keyboard+Accessibility
+Plugin+API

Make it More Accessible
The list of tweets is like a set of sideways tabs

• Put the friends list in the tab order
• Make each friend selectable with the arrow keys
• Make each friend activatable
• show an alert when the friend is activated
• With ARIA, identify each friend as a tab
• Make the tweet list a tab panel

What is AJAX?

• A technique for making HTTP requests from JavaScript without
reloading the entire page

• Asynchronous, meaning it doesn’t block the UI

• The X stands for XML, but JSON is often more convenient

• The heart of Web 2.0: enables unprecedented dynamism on the
Web

REST
• Just the way the Web works

• Resources are the nouns, referred to by URL

• e.g. http://twitter.com/friends

• Representations deﬁne a format for a resource (eg.
XML or JSON)

• e.g. http://twitter.com/friends.json

• A small set of verbs:

• GET: gets data from the server

• POST: updates data on the server

• DELETE, PUT

AJAX with jQuery

$.ajax({
url: “http://twitter.com/friends”,
type:”GET”,
dataType: “json”, // “xml”, “json”, “html”, “script”
data: { // Object containing query variables
id: 123457
},
success: function (data) { }, // A callback upon success
error: function () { } // Callback if an error occurs
});

jQuery Plugins

• Plugins extend jQuery’s functionality
• No special API: they just mix themselves into
the jQuery object directly
• Shared namespace: risky for portals
• Two types: community plugins and jQuery UI

Community Plugins

http://plugins.jquery.com/

• User-contributed

• Anything goes

• Some great stuff, some awful stuff

jQuery UI Plugins
http://ui.jquery.com/

• “Ofﬁcial” widgets for jQuery

• Generally more robust and reusable

• Developed by a community of experienced coders

• Accessibility

• Great themeing and skinning

jQuery UI Plugins
http://ui.jquery.com/
• Dialog

• Slider

• Tabs

• Accordion

• Date picker

• Autocomplete

• Progress bar

• Button

jQuery UI Dialog

var dialogRoot = $(“.settingsDialog”);
dialogRoot.dialog({
modal: true
buttons: {
“Cancel”: function () {
$(this).dialog(“close”);
},
“Settings”: function () {
save();
$(this).dialog(“close”);
}
});

dialogRoot.dialog(“open”);

Theme Roller
http://jqueryui.com/themeroller/

Portals, Mashups, and CMS’s

• These days, diverse code and markup coexists
• Most JavaScript is written as if it owns the
whole browser
• As you combine stuff, things can break
• Namespacing and privacy is essential

Writing Collision-Free JavaScript

• Put code in a unique namespace
• Use closures for privacy
• Support more than one on the page
• Scope all variables to an instance

• Avoid hard-baking ID selectors

• Constrain selectors within a speciﬁc element

User Interface Development with jQuery

Recommended

More Related Content

What's hot (20)

Viewers also liked (7)

Similar to User Interface Development with jQuery (20)

More from colinbdclark (9)

Recently uploaded (20)

User Interface Development with jQuery
