IN A ROCKET
Learn front-end development at rocket speed
CSS CSS FUNDAMENTALS
Units
CSS FUNDAMENTALS: Build a strong foundation by solving real cases inarocket.com
ABSOLUTE

UNITS
RELATIVE

UNITS
CSS FUNDAMENTALS: Build a strong foundation by solving real cases inarocket.com

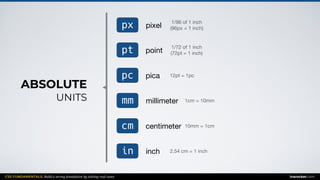

ABSOLUTE

UNITS
px pixel
1/96 of 1 inch

(96px = 1 inch)
pt point
1/72 of 1 inch

(72pt = 1 inch)
pc pica 12pt = 1pc
mm millimeter 1cm = 10mm
cm centimeter 10mm = 1cm
in inch 2.54 cm = 1 inch
CSS FUNDAMENTALS: Build a strong foundation by solving real cases inarocket.com
GOOD
PRACTICE
Pixels are bad for usability:

• they don't scale,

• they don't help other elements
to scale proportionally.
Use them only when you
really need an exact and
fixed size.
EXAMPLE
border: 1px solid #000;
AVOID PIXELS
CSS FUNDAMENTALS: Build a strong foundation by solving real cases inarocket.com
ABSOLUTE

UNITS
RELATIVE

UNITS
CSS FUNDAMENTALS: Build a strong foundation by solving real cases inarocket.com
RELATIVE

UNITS
% Percentage Relative to the parent element’s

value for that property.
em Em Relative to the current font-size of the element.
rem Root em Relative to the font-size of the root.
ch Character Relative to width of the "0".
vw Viewport width Relative to the width of viewport.

1vw = 1/100 of the viewport’s width.
vh Viewport height Relative to the height of viewport.

1vw = 1/100 of the viewport’s height.
vmin Smaller dimension 1vmin = 1/100 of viewport’s

smaller dimension.
ex x-height Relative to the height of a lower-case x.
vmax Larger dimension 1vmax = 1/100 of viewport’s

larger dimension.
CSS FUNDAMENTALS: Build a strong foundation by solving real cases inarocket.com
RELATIVE UNITS / PERCENTAGE
.box { width: 50%; }
container: 1000x
Box
500px
CSS FUNDAMENTALS: Build a strong foundation by solving real cases inarocket.com
RELATIVE UNITS / EM
.box {
font-size: 2em;
width: 4em;
}
font-size: 20px
Box
20x4
Container text.
20x2
CSS FUNDAMENTALS: Build a strong foundation by solving real cases inarocket.com
RELATIVE UNITS / REM
:root { font-size: 15px; }
.box {
font-size: 3rem;
width: 6rem;
}
font-size: 20px
Box
15x6
Container text.
15x3
CSS FUNDAMENTALS: Build a strong foundation by solving real cases inarocket.com
RELATIVE UNITS / REM vs EM
EM REM
html {font-size: 100%} /* 16px */
h1 {
font-size: 2em;
margin-bottom: 1em;
}
p {
font-size: 1em;
margin-bottom: 1em;
}
/* 1em = 16px */
/* 1em = 32px */
/* 1em = 16px */
/* 1em = 16px */
html {font-size: 100%} /* 16px */
h1 {
font-size: 2rem;
margin-bottom: 1rem;
}
p {
font-size: 1rem;
margin-bottom: 1rem;
}
/* 1em = 16px */
/* 1em = 16px */
/* 1em = 16px */
/* 1em = 16px */
[
[
CSS FUNDAMENTALS: Build a strong foundation by solving real cases inarocket.com
RELATIVE UNITS / VW
.box {
width: 50vw;
}
viewport
Box
50% of the viewport
CSS FUNDAMENTALS: Build a strong foundation by solving real cases inarocket.com
RELATIVE UNITS / VH
.box {
height: 100vh;
}
viewport
Box
100% of the viewport
CSS FUNDAMENTALS: Build a strong foundation by solving real cases inarocket.com
RELATIVE UNITS / VMIN
.box {
font-size: 10vmin;
}
width: 1000px
Box 10% of 500px=50px
1vmin = 1vw or 1vh, whichever is smaller.
height: 500px
CSS FUNDAMENTALS: Build a strong foundation by solving real cases inarocket.com
RELATIVE UNITS / VMAX
.box {
font-size: 10vmax;
}
width: 1000px
Box
1vmax = 1vw or 1vh, whichever is larger.
height: 500px
10% of 1000px=100px
CSS FUNDAMENTALS: Build a strong foundation by solving real cases inarocket.com
HOW TO CHOOSE A CSS UNIT
Do I need to scale an element when
the viewport size changes?
What do I want it to scale relative to?
CSS FUNDAMENTALS: Build a strong foundation by solving real cases inarocket.com
ABSOLUTE

UNITS
RELATIVE

UNITS
CSS FUNDAMENTALS: Build a strong foundation by solving real cases inarocket.com
TOOLS: TYPE SCALE
Learn front-end development at rocket speed
inarocket.com
by miguelsanchez.com
YOU CAN CONTINUE THIS COURSE FOR FREE ON
+ READY TO USE CODE
+ QUIZZES
+ FREE UPDATES
We respect your time

No more blah blah videos. Just straight to
the point slides with relevant information.
Ready to use code

Real code you can just copy and paste into
your real projects.
Step by step guides

Clear and concise steps to build real use
solutions. No missed points.
Learn front-end development at rocket speed
inarocket.com
IN A ROCKET
Learn front-end development at rocket speed
CSS CSS FUNDAMENTALS
Units
