Html css java script basics All about you need

HTML Basics
HTML,Text, Images,Tables
Dipen Parmar
dipenparmar12@gmail.com
https://www.youtube.com/channel/UChvhhq
qFl23yYwq54ykoOQQ

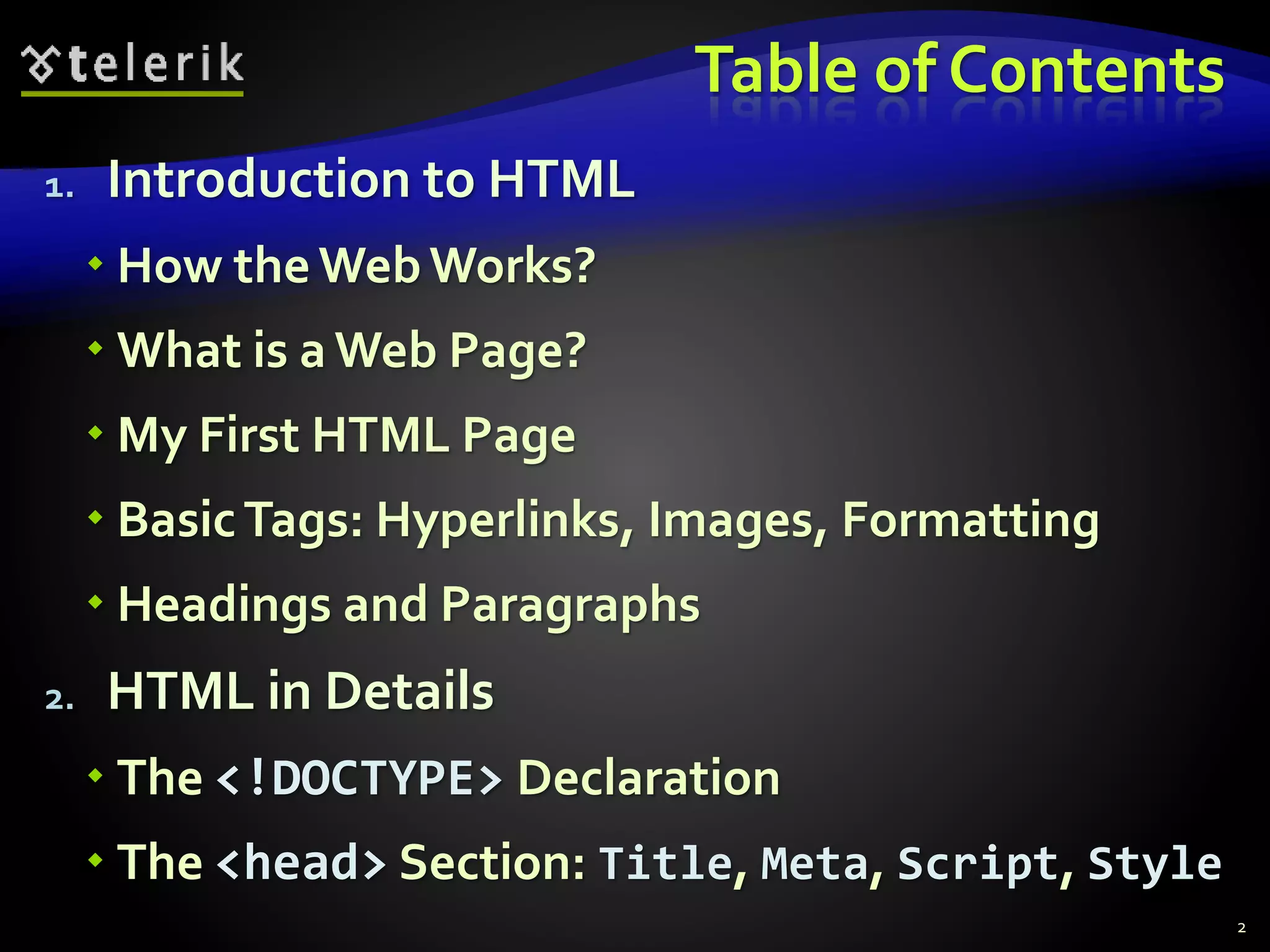

Table of Contents
1. Introduction to HTML
 How theWebWorks?
 What is a Web Page?
 My First HTML Page
 BasicTags: Hyperlinks, Images, Formatting
 Headings and Paragraphs
2. HTML in Details
 The <!DOCTYPE> Declaration
 The <head> Section: Title, Meta, Script, Style
2

Table of Contents (2)
2. HTML in Details
 The <body> Section
 Text Styling and FormattingTags
 Hyperlinks: <a>, Hyperlinks and Sections
 Images: <img>
 Lists: <ol>, <ul> and <dl>
3. The <div> and <span> elements
4. HTMLTables
5. HTML Forms
3

How the Web Works?
 WWW use classical client / server architecture
 HTTP is text-based request-response protocol
4
Page request
Client running a
Web Browser
Server runningWeb
Server Software
(IIS, Apache, etc.)
Server response
HTTP
HTTP

What is a Web Page?
 Web pages are text files containing HTML
 HTML – Hyper Text Markup Language
 A notation for describing
 document structure (semantic markup)
 formatting (presentation markup)
 Looks (looked?) like:
 A Microsoft Word document
 The markup tags provide information about
the page content structure
5

Creating HTML Pages
 An HTML file must have an .htm or .html file
extension
 HTML files can be created with text editors:
 NotePad, NotePad ++, PSPad
 Or HTML editors (WYSIWYG Editors):
 Microsoft FrontPage
 Macromedia Dreamweaver
 Netscape Composer
 Microsoft Word
 Visual Studio 6

HTML Basics
Text, Images,Tables, Forms

HTML Structure
 HTML is comprised of “elements” and “tags”
 Begins with <html> and ends with </html>
 Elements (tags) are nested one inside another:
 Tags have attributes:
 HTML describes structure using two main sections:
<head> and <body>
8
<html> <head></head> <body></body> </html>
<img src="logo.jpg" alt="logo" />

HTML Code Formatting
 The HTML source code should be formatted to
increase readability and facilitate debugging.
 Every block element should start on a new line.
 Every nested (block) element should be indented.
 Browsers ignore multiple whitespaces in the page
source, so formatting is harmless.
 For performance reasons, formatting can be
sacrificed
9

First HTML Page
10
<!DOCTYPE HTML>
<html>
<head>
<title>My First HTML Page</title>
</head>
<body>
<p>This is some text...</p>
</body>
</html>
test.html

<!DOCTYPE HTML>
<html>
<head>
</head>
<body>
</body>
</html>
First HTML Page:Tags
11
Opening tag
Closing tag
An HTML element consists of an opening tag, a closing tag
and the content inside.

<!DOCTYPE HTML>
<html>
<head>
</head>
<body>
</body>
</html>
First HTML Page: Header
12
HTML header

<!DOCTYPE HTML>
<html>
<head>
</head>
<body>
</body>
</html>
First HTML Page: Body
13
HTML body

Some SimpleTags
 HyperlinkTags
 ImageTags
 Text formatting tags
14
<a href="http://www.telerik.com/"
title="Telerik">Link to Telerik Web site</a>
<img src="logo.gif" alt="logo" />
This text is <em>emphasized.</em>
<br />new line<br />
This one is <strong>more emphasized.</strong>

Some SimpleTags – Example
15
<!DOCTYPE HTML>
<html>
<head>
<title>Simple Tags Demo</title>
</head>
<body>
<a href="http://www.telerik.com/" title=
"Telerik site">This is a link.</a>
<br />
<br />
<strong>Bold</strong> and <em>italic</em> text.
</body>
</html>
some-tags.html

Some SimpleTags – Example (2)
16
<!DOCTYPE HTML>
<html>
<head>
<title>Simple Tags Demo</title>
</head>
<body>
<a href="http://www.telerik.com/" title=
"Telerik site">This is a link.</a>
<br />
<br />
<strong>Bold</strong> and <em>italic</em> text.
</body>
</html>
some-tags.html

Tags Attributes
 Tags can have attributes
 Attributes specify properties and behavior
 Example:
 Few attributes can apply to every element:
 id, style, class, title
 The id is unique in the document
 Content of title attribute is displayed as hint
when the element is hovered with the mouse
 Some elements have obligatory attributes
17
Attribute alt with value "logo"

Headings and Paragraphs
 HeadingTags (h1 – h6)
 ParagraphTags
 Sections: div and span
18
<p>This is my first paragraph</p>
<p>This is my second paragraph</p>
<h1>Heading 1</h1>
<h2>Sub heading 2</h2>
<div style="background: skyblue;">
This is a div</div>

Headings and Paragraphs –
Example
19
<!DOCTYPE HTML>
<html>
<head><title>Headings and paragraphs</title></head>
<body>
<h1>Heading 1</h1>
<div style="background:skyblue">
This is a div</div>
</body>
</html>
headings.html

<!DOCTYPE HTML>
<html>
<head><title>Headings and paragraphs</title></head>
<body>
<h1>Heading 1</h1>
<div style="background:skyblue">
This is a div</div>
</body>
</html>
Headings and Paragraphs –
Example (2)
20
headings.html

Introduction to HTML
HTML Document Structure in Depth

Preface
 It is important to have the correct vision and
attitude towards HTML
 HTML is only about structure, not appearance
 Browsers tolerate invalid HTML code and parse
errors – you should not.
22

The <!DOCTYPE> Declaration
 HTML documents must start with a document
type definition (DTD)
 It tells web browsers what type is the served code
 Possible versions: HTML 4.01, XHTML 1.0
(Transitional or Strict), XHTML 1.1, HTML 5
 Example:
 See http://w3.org/QA/2002/04/valid-dtd-list.html for a list
of possible doctypes
23
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

HTML vs. XHTML
 XHTML is more strict than HTML
 Tags and attribute names must be in lowercase
 All tags must be closed (<br/>, <img/>) while
HTML allows <br> and <img> and implies
missing closing tags (<p>par1 <p>par2)
 XHTML allows only one root <html> element
(HTML allows more than one)
24

XHTML vs. HTML (2)
 Many element attributes are deprecated in
XHTML, most are moved to CSS
 Attribute minimization is forbidden, e.g.
 Note:Web browsers load XHTML faster than
HTML and valid code faster than invalid!
25
<input type="checkbox" checked>
<input type="checkbox" checked="checked" />

The <head> Section
 Contains information that doesn’t show
directly on the viewable page
 Starts after the <!doctype> declaration
 Begins with <head> and ends with </head>
 Contains mandatory single <title> tag
 Can contain some other tags, e.g.
 <meta>
 <script>
 <style>
 <!–- comments --> 26

<head> Section: <title> tag
 Title should be placed between <head> and
</head> tags
 Used to specify a title in the window title bar
 Search engines and people rely on titles
27
<title>Telerik Academy – Winter Season 2009/2010
</title>

<head> Section: <meta>
 Meta tags additionally describe the content
contained within the page
28
<meta name="description" content="HTML
tutorial" />
<meta name="keywords" content="html, web
design, styles" />
<meta name="author" content="Chris Brewer" />
<meta http-equiv="refresh" content="5;
url=http://www.telerik.com" />

<head> Section: <script>
 The <script> element is used to embed
scripts into an HTML document
 Script are executed in the client's Web browser
 Scripts can live in the <head> and in the <body>
sections
 Supported client-side scripting languages:
 JavaScript (it is not Java!)
 VBScript
 JScript
29

The <script>Tag – Example
30
<!DOCTYPE HTML>
<html>
<head>
<title>JavaScript Example</title>
<script type="text/javascript">
function sayHello() {
document.write("<p>Hello World!</p>");
}
</script>
</head>
<body>
<script type=
"text/javascript">
sayHello();
</script>
</body>
</html>
scripts-example.html

<head> Section: <style>
 The <style> element embeds formatting
information (CSS styles) into an HTML page
31
<html>
<head>
<style type="text/css">
p { font-size: 12pt; line-height: 12pt; }
p:first-letter { font-size: 200%; }
span { text-transform: uppercase; }
</style>
</head>
<body>
<p>Styles demo.<br />
<span>Test uppercase</span>.
</p>
</body>
</html>
style-example.html

Comments: Tag
 Comments can exist anywhere between the
<html></html> tags
 Comments start with
32
<!–- Telerik Logo (a JPG file) -->
<img src="logo.jpg" alt=“Telerik Logo">
<!–- Hyperlink to the web site -->
<a href="http://telerik.com/">Telerik</a>
<!–- Show the news table -->
<table class="newstable">
...

<body> Section: Introduction
 The <body> section describes the viewable
portion of the page
 Starts after the <head> </head> section
 Begins with <body> and ends with </body>
33
<html>
<head><title>Test page</title></head>
<body>

</body>
</html>

Text Formatting
 Text formatting tags modify the text between
the opening tag and the closing tag
 Ex. <b>Hello</b> makes “Hello” bold
<b></b> bold
<i></i> italicized
<u></u> underlined
<sup></sup> Samplesuperscript
<sub></sub> Samplesubscript
<strong></strong> strong
<em></em> emphasized
<pre></pre> Preformatted text
<blockquote></blockquote> Quoted text block
<del></del> Deleted text – strike through
34

Text Formatting – Example
35
<html>
<head>
<title>Page Title</title>
</head>
<body>
<h1>Notice</h1>
<p>This is a <em>sample</em> Web page.</p>
<p><pre>Next paragraph:
preformatted.</pre></p>
<h2>More Info</h2>
<p>Specifically, we’re using XHMTL 1.0 transitional.<br />
Next line.</p>
</body>
</html>
text-formatting.html

Text Formatting – Example (2)
36
<html>
<head>
<title>Page Title</title>
</head>
<body>
<h1>Notice</h1>
<p>This is a <em>sample</em> Web page.</p>
<p><pre>Next paragraph:
preformatted.</pre></p>
<h2>More Info</h2>
<p>Specifically, we’re using XHMTL 1.0 transitional.<br />
Next line.</p>
</body>
</html>
text-formatting.html

Hyperlinks: <a>Tag
 Link to a document called form.html on the
same server in the same directory:
 Link to a document called parent.html on
the same server in the parent directory:
 Link to a document called cat.html on the
same server in the subdirectory stuff:
37
<a href="form.html">Fill Our Form</a>
<a href="../parent.html">Parent</a>
<a href="stuff/cat.html">Catalog</a>

Hyperlinks: <a>Tag (2)
 Link to an external Web site:
 Always use a full URL, including "http://", not
just "www.somesite.com"
 Using the target="_blank" attribute opens
the link in a new window
 Link to an e-mail address:
38
<a href="http://www.devbg.org" target="_blank">BASD</a>
<a href="mailto:bugs@example.com?subject=Bug+Report">
Please report bugs here (by e-mail only)</a>

Hyperlinks: <a>Tag (3)
 Link to a document called apply-now.html
 On the same server, in same directory
 Using an image as a link button:
 Link to a document called index.html
 On the same server, in the subdirectory english of
the parent directory:
39
<a href="apply-now.html"><img
src="apply-now-button.jpg" /></a>
<a href="../english/index.html">Switch to
English version</a>

Hyperlinks and Sections
 Link to another location in the same document:
 Link to a specific location in another document:
40
<a href="#section1">Go to Introduction</a>
...
<h2 id="section1">Introduction</h2>
<a href="chapter3.html#section3.1.1">Go to Section
3.1.1</a>
<!–- In chapter3.html -->
...
<div id="section3.1.1">
<h3>3.1.1. Technical Background</h3>
</div>

Hyperlinks – Example
41
<a href="form.html">Fill Our Form</a> <br />
<a href="../parent.html">Parent</a> <br />
<a href="stuff/cat.html">Catalog</a> <br />
<br />
<a href="mailto:bugs@example.com?subject=Bug
Report">Please report bugs here (by e-mail only)</a>
<br />
<a href="apply-now.html"><img src="apply-now-button.jpg”
/></a> <br />
<a href="../english/index.html">Switch to English
version</a> <br />
hyperlinks.html

<a href="form.html">Fill Our Form</a> <br />
<a href="../parent.html">Parent</a> <br />
<a href="stuff/cat.html">Catalog</a> <br />
<br />
<a href="mailto:bugs@example.com?subject=Bug
Report">Please report bugs here (by e-mail only)</a>
<br />
<a href="apply-now.html"><img src="apply-now-button.jpg”
/></a> <br />
<a href="../english/index.html">Switch to English
version</a> <br />
hyperlinks.html
Hyperlinks – Example (2)
42

Links to the Same Document –
Example
43
<h1>Table of Contents</h1>
<p><a href="#section1">Introduction</a><br />
<a href="#section2">Some background</A><br />
<a href="#section2.1">Project History</a><br />
...the rest of the table of contents...

... Section 1 follows here ...
<h2 id="section2">Some background</h2>
<h3 id="section2.1">Project History</h3>
... Section 2.1 follows here ...
links-to-same-document.html

Links to the Same Document –
Example (2)
44
<h1>Table of Contents</h1>
<p><a href="#section1">Introduction</a><br />
<a href="#section2">Some background</A><br />
<a href="#section2.1">Project History</a><br />
...the rest of the table of contents...

<h2 id="section2">Some background</h2>
<h3 id="section2.1">Project History</h3>
... Section 2.1 follows here ...
links-to-same-document.html

 Inserting an image with <img> tag:
 Image attributes:
 Example:
Images: <img> tag
src Location of image file (relative or absolute)
alt Substitute text for display (e.g. in text mode)
height Number of pixels of the height
width Number of pixels of the width
border Size of border, 0 for no border
<img src="/img/basd-logo.png">
<img src="./php.png" alt="PHP Logo" />
45

MiscellaneousTags
 <hr />: Draws a horizontal rule (line):
 <center></center>: Deprecated!
 <font></font>: Deprecated!
46
<hr size="5" width="70%" />
<center>Hello World!</center>
<font size="3" color="blue">Font3</font>
<font size="+4" color="blue">Font+4</font>

MiscellaneousTags – Example
47
<html>
<head>
<title>Miscellaneous Tags Example</title>
</head>
<body>
<hr size="5" width="70%" />
<center>Hello World!</center>
<font size="3" color="blue">Font3</font>
<font size="+4" color="blue">Font+4</font>
</body>
</html>
misc.html

a. Apple
b. Orange
c. Grapefruit
Ordered Lists: <ol>Tag
 Create an Ordered List using <ol></ol>:
 Attribute values for type are 1, A, a, I, or i
48
1. Apple
2. Orange
3. Grapefruit
A. Apple
B. Orange
C. Grapefruit
I. Apple
II. Orange
III. Grapefruit
i. Apple
ii. Orange
iii. Grapefruit
<ol type="1">
<li>Apple</li>
<li>Orange</li>
<li>Grapefruit</li>
</ol>

Unordered Lists: <ul>Tag
 Create an Unordered List using <ul></ul>:
 Attribute values for type are:
 disc, circle or square
49
• Apple
• Orange
• Pear
o Apple
o Orange
o Pear
 Apple
 Orange
 Pear
<ul type="disk">
<li>Apple</li>
<li>Orange</li>
<li>Grapefruit</li>
</ul>

Definition lists: <dl> tag
 Create definition lists using <dl>
 Pairs of text and associated definition; text is in
<dt> tag, definition in <dd> tag
 Renders without bullets
 Definition is indented
50
<dl>
<dt>HTML</dt>
<dd>A markup language …</dd>
<dt>CSS</dt>
<dd>Language used to …</dd>
</dl>

Lists – Example
51
<ol type="1">
<li>Apple</li>
<li>Orange</li>
<li>Grapefruit</li>
</ol>
<ul type="disc">
<li>Apple</li>
<li>Orange</li>
<li>Grapefruit</li>
</ul>
<dl>
<dt>HTML</dt>
<dd>A markup lang…</dd>
</dl>
lists.html

HTML Special Characters
££British Pound
€€Euro
""Quotation Mark
¥¥JapaneseYen
——Em Dash
 Non-breaking Space
&&Ampersand
>>GreaterThan
<<LessThan
™™Trademark Sign
®®RegisteredTrademark Sign
©©Copyright Sign
SymbolHTML EntitySymbol Name
52

Special Characters – Example
53
<p>[>>  Welcome
  <<]</p>
<p>►I have following cards:
A♣, K♦ and 9♥.</p>
<p>►I prefer hard rock ♫
music ♫</p>
<p>© 2006 by Svetlin Nakov & his
team</p>
<p>Telerik Academy™</p>
special-chars.html

Special Chars – Example (2)
54
<p>[>>  Welcome
  <<]</p>
<p>►I have following cards:
A♣, K♦ and 9♥.</p>
<p>►I prefer hard rock ♫
music ♫</p>
<p>© 2006 by Svetlin Nakov & his
team</p>
<p>Telerik Academy™</p>
special-chars.html

Using <DIV> and <SPAN>
Block and Inline Elements

Block and Inline Elements
 Block elements add a line break before and
after them
 <div> is a block element
 Other block elements are <table>, <hr>,
headings, lists, <p> and etc.
 Inline elements don’t break the text before
and after them
 <span> is an inline element
 Most HTML elements are inline, e.g. <a>
56

The <div>Tag
 <div> creates logical divisions within a page
 Block style element
 Used with CSS
 Example:
57
<div style="font-size:24px; color:red">DIV
example</div>
<p>This one is <span style="color:red; font-
weight:bold">only a test</span>.</p>
div-and-span.html

The <span>Tag
 Inline style element
 Useful for modifying a specific portion of text
 Don't create a separate area
(paragraph) in the document
 Very useful with CSS
58
<p>This one is <span style="color:red; font-
weight:bold">only a test</span>.</p>
<p>This one is another <span style="font-size:32px;
font-weight:bold">TEST</span>.</p>
span.html

HTMLTables
 Tables represent tabular data
 A table consists of one or several rows
 Each row has one or more columns
 Tables comprised of several core tags:
<table></table>: begin / end the table
<tr></tr>: create a table row
<td></td>: create tabular data (cell)
 Tables should not be used for layout. Use CSS
floats and positioning styles instead
60

HTMLTables (2)
 Start and end of a table
 Start and end of a row
 Start and end of a cell in a row
61
<table> ... </table>
<tr> ... </tr>
<td> ... </td>

Simple HTMLTables – Example
62
<table cellspacing="0" cellpadding="5">
<tr>
<td><img src="ppt.gif"></td>
<td><a href="lecture1.ppt">Lecture 1</a></td>
</tr>
<tr>
</tr>
<tr>
<td><img src="zip.gif"></td>
<td><a href="lecture2-demos.zip">
Lecture 2 - Demos</a></td>
</tr>
</table>

<tr>
</tr>
<tr>
</tr>
<tr>
<td><img src="zip.gif"></td>
<td><a href="lecture2-demos.zip">
Lecture 2 - Demos</a></td>
</tr>
</table>
Simple HTMLTables – Example (2)
63

Complete HTMLTables
 Table rows split into three semantic sections:
header, body and footer
 <thead> denotes table header and contains
<th> elements, instead of <td> elements
 <tbody> denotes collection of table rows that
contain the very data
 <tfoot> denotes table footer but comes
BEFORE the <tbody> tag
 <colgroup> and <col> define columns (most
often used to set column widths)
64

Complete HTMLTable: Example
65
<table>
<colgroup>
<col style="width:100px" /><col />
</colgroup>
<thead>
<tr><th>Column 1</th><th>Column 2</th></tr>
</thead>
<tfoot>
<tr><td>Footer 1</td><td>Footer 2</td></tr>
</tfoot>
<tbody>
<tr><td>Cell 1.1</td><td>Cell 1.2</td></tr>
</tbody>
</table>
header
footer
Last comes the body (data)
th
columns

<table>
<colgroup>
<col style="width:200px" /><col />
</colgroup>
<thead>
<tr><th>Column 1</th><th>Column 2</th></tr>
</thead>
<tfoot>
<tr><td>Footer 1</td><td>Footer 2</td></tr>
</tfoot>
<tbody>
</tbody>
</table>
Complete HTMLTable:
Example (2)
66
table-full.html
Although the footer is
before the data in the
code, it is displayed last
By default, header text
is bold and centered.

NestedTables
 Table data “cells” (<td>) can contain nested
tables (tables within tables):
67
<table>
<tr>
<td>Contact:</td>
<td>
<table>
<tr>
<td>First Name</td>
<td>Last Name</td>
</tr>
</table>
</td>
</tr>
</table>
nested-tables.html

 cellpadding
 Defines the empty
space around the cell
content
 cellspacing
 Defines the
empty space
between cells
Cell Spacing and Padding
 Tables have two important attributes:
68
cell cell
cell cell
cell
cell
cell
cell

Cell Spacing and Padding –
Example
69
<html>
<head><title>Table Cells</title></head>
<body>
<tr><td>First</td>
<td>Second</td></tr>
</table>
<br/>
<tr><td>First</td><td>Second</td></tr>
</table>
</body>
</html>
table-cells.html

Cell Spacing and Padding –
Example (2)
70
<html>
<head><title>Table Cells</title></head>
<body>
<tr><td>First</td>
<td>Second</td></tr>
</table>
<br/>
<tr><td>First</td><td>Second</td></tr>
</table>
</body>
</html>
table-cells.html

 rowspan
 Defines how
many rows the
cell occupies
 colspan
 Defines how
many columns
the cell occupies
Column and Row Span
 Table cells have two important attributes:
71
cell[1,1] cell[1,2]
cell[2,1]
colspan="1"colspan="1"
colspan="2"
cell[1,1]
cell[1,2]
cell[2,1]
rowspan="2" rowspan="1"
rowspan="1"

Column and Row Span – Example
72
<table cellspacing="0">
<tr class="1"><td>Cell[1,1]</td>
<td colspan="2">Cell[2,1]</td></tr>
<tr class=“2"><td>Cell[1,2]</td>
<td rowspan="2">Cell[2,2]</td>
<td>Cell[3,2]</td></tr>
</table>
table-colspan-rowspan.html

<table cellspacing="0">
<tr class="1"><td>Cell[1,1]</td>
<td colspan="2">Cell[2,1]</td></tr>
<td rowspan="2">Cell[2,2]</td>
</table>
Column and Row Span –
Example (2)
73
table-colspan-rowspan.html
Cell[2,3]Cell[1,3]
Cell[3,2]
Cell[2,2]
Cell[1,2]
Cell[2,1]Cell[1,1]

HTML Forms
Entering User Data from a Web Page

HTML Forms
 Forms are the primary method for gathering
data from site visitors
 Create a form block with
 Example:
75
<form></form>
<form name="myForm" method="post"
action="path/to/some-script.php">
...
</form>
The "action" attribute tells where
the form data should be sent
The “method" attribute tells how
the form data should be sent –
via GET or POST request

Form Fields
 Single-line text input fields:
 Multi-line textarea fields:
 Hidden fields contain data not shown to the user:
 Often used by JavaScript code
76
<input type="text" name="FirstName" value="This
is a text field" />
<textarea name="Comments">This is a multi-line
text field</textarea>
<input type="hidden" name="Account" value="This
is a hidden text field" />

Fieldsets
 Fieldsets are used to enclose a group of related
form fields:
 The <legend> is the fieldset's title.
77
<form method="post" action="form.aspx">
<fieldset>
<legend>Client Details</legend>
<input type="text" id="Name" />
<input type="text" id="Phone" />
</fieldset>
<fieldset>
<legend>Order Details</legend>
<input type="text" id="Quantity" />
<textarea cols="40" rows="10"
id="Remarks"></textarea>
</fieldset>
</form>

Form Input Controls
 Checkboxes:
 Radio buttons:
 Radio buttons can be grouped, allowing only one
to be selected from a group:
78
<input type="checkbox" name="fruit"
value="apple" />
<input type="radio" name="title" value="Mr." />
<input type="radio" name="city" value="Lom" />
<input type="radio" name="city" value="Ruse" />

Other Form Controls
 Dropdown menus:
 Submit button:
79
<select name="gender">
<option value="Value 1"
selected="selected">Male</option>
<option value="Value 2">Female</option>
<option value="Value 3">Other</option>
</select>
<input type="submit" name="submitBtn"
value="Apply Now" />

Other Form Controls (2)
 Reset button – brings the form to its initial state
 Image button – acts like submit but image is
displayed and click coordinates are sent
 Ordinary button – used for Javascript, no default
action
80
<input type="reset" name="resetBtn"
value="Reset the form" />
<input type="image" src="submit.gif"
name="submitBtn" alt="Submit" />
<input type="button" value="click me" />

 Password input – a text field which masks the
entered text with * signs
 Multiple select field – displays the list of items in
multiple lines, instead of one
81
<input type="password" name="pass" />
<select name="products" multiple="multiple">
<option value="Value 1"
selected="selected">keyboard</option>
<option value="Value 2">mouse</option>
<option value="Value 3">speakers</option>
</select>

 File input – a field used for uploading files
 When used, it requires the form element to have a
specific attribute:
82
<input type="file" name="photo" />
<form enctype="multipart/form-data">
...
<input type="file" name="photo" />
...
</form>

Labels
 Form labels are used to associate an explanatory
text to a form field using the field's ID.
 Clicking on a label focuses its associated field
(checkboxes are toggled, radio buttons are
checked)
 Labels are both a usability and accessibility
feature and are required in order to pass
accessibility validation.
83
<label for="fn">First Name</label>
<input type="text" id="fn" />

HTML Forms – Example
84
<form method="post" action="apply-now.php">
<input name="subject" type="hidden" value="Class" />
<fieldset><legend>Academic information</legend>
<label for="degree">Degree</label>
<select name="degree" id="degree">
<option value="BA">Bachelor of Art</option>
<option value="BS">Bachelor of Science</option>
<option value="MBA" selected="selected">Master of
Business Administration</option>
</select>
<br />
<label for="studentid">Student ID</label>
<input type="password" name="studentid" />
</fieldset>
<fieldset><legend>Personal Details</legend>
<label for="fname">First Name</label>
<input type="text" name="fname" id="fname" />
<br />
<label for="lname">Last Name</label>
<input type="text" name="lname" id="lname" />
form.html

HTML Forms – Example (2)
85
<br />
Gender:
<input name="gender" type="radio" id="gm" value="m" />
<label for="gm">Male</label>
<input name="gender" type="radio" id="gf" value="f" />
<label for="gf">Female</label>
<br />
<label for="email">Email</label>
<input type="text" name="email" id="email" />
</fieldset>
<p>
<textarea name="terms" cols="30" rows="4"
readonly="readonly">TERMS AND CONDITIONS...</textarea>
</p>
<p>
<input type="submit" name="submit" value="Send Form" />
<input type="reset" value="Clear Form" />
</p>
</form>
form.html (continued)

form.html (continued)
HTML Forms – Example (3)
86

TabIndex
 The tabindex HTML attribute controls the
order in which form fields and hyperlinks are
focused when repeatedly pressing theTAB key
 tabindex="0" (zero) - "natural" order
 If X >Y, then elements with tabindex="X" are
iterated before elements with tabindex="Y"
 Elements with negative tabindex are skipped,
however, this is not defined in the standard
87
<input type="text" tabindex="10" />

HTML Frames
<frameset>, <frame> and <iframe>

HTML Frames
 Frames provide a way to show multiple HTML
documents in a single Web page
 The page can be split into separate views
(frames) horizontally and vertically
 Frames were popular in the early ages of HTML
development, but now their usage is rejected
 Frames are not supported by all user agents
(browsers, search engines, etc.)
 A <noframes> element is used to provide
content for non-compatible agents.
89

HTML Frames – Demo
90
<html>
<head><title>Frames Example</title></head>
<frameset cols="180px,*,150px">
<frame src="left.html" />
<frame src="middle.html" />
<frame src="right.html" />
</frameset>
</html>
frames.html
 Note the target attribute applied to the
<a> elements in the left frame.

Inline Frames: <iframe>
 Inline frames provide a way to show one
website inside another website:
91
<iframe name="iframeGoogle" width="600" height="400"
src="http://www.google.com" frameborder="yes"
scrolling="yes"></iframe>
iframe-demo.html

Table of Contents
 What is CSS?
 Styling with Cascading Stylesheets (CSS)
 Selectors and style definitions
 Linking HTML and CSS
 Fonts, Backgrounds, Borders
 The Box Model
 Alignment, Z-Index, Margin, Padding
 Positioning and Floating Elements
 Visibility, Display, Overflow
 CSS DevelopmentTools
93

CSS: A New Philosophy
 Separate content from presentation!
94
Title
Lorem ipsum dolor sit amet,
consectetuer adipiscing elit.
Suspendisse at pede ut purus
malesuada dictum. Donec vitae
neque non magna aliquam
dictum.
• Vestibulum et odio et ipsum
• accumsan accumsan. Morbi at
• arcu vel elit ultricies porta. Proin
tortor purus, luctus non, aliquam
nec, interdum vel, mi. Sed nec
quam nec odio lacinia molestie.
Praesent augue tortor, convallis
eget, euismod nonummy, lacinia
ut, risus.
Bold
Italics
Indent
Content
(HTML document)
Presentation
(CSS Document)

The Resulting Page
95
Title
Lorem ipsum dolor sit amet,
consectetuer adipiscing elit.
Suspendisse at pede ut purus
malesuada dictum. Donec vitae neque
non magna aliquam dictum.
• Vestibulum et odio et ipsum
• accumsan accumsan. Morbi at
• arcu vel elit ultricies porta. Proin
Tortor purus, luctus non, aliquam nec,
interdum vel, mi. Sed nec quam nec
odio lacinia molestie. Praesent augue
tortor, convallis eget, euismod
nonummy, lacinia ut, risus.

CSS Intro
Styling with Cascading Stylesheets

CSS Introduction
 Cascading Style Sheets (CSS)
 Used to describe the presentation of documents
 Define sizes, spacing, fonts, colors, layout, etc.
 Improve content accessibility
 Improve flexibility
 Designed to separate presentation from content
 Due to CSS, all HTML presentation tags and
attributes are deprecated, e.g. font, center, etc.
97

CSS Introduction (2)
 CSS can be applied to any XML document
 Not just to HTML / XHTML
 CSS can specify different styles for different
media
 On-screen
 In print
 Handheld, projection, etc.
 … even by voice or Braille-based reader
98

Why “Cascading”?
 Priority scheme determining which style rules
apply to element
 Cascade priorities or specificity (weight) are
calculated and assigned to the rules
 Child elements in the HTML DOM tree inherit
styles from their parent
 Can override them
 Control via !important rule
99

Why “Cascading”? (3)
 Some CSS styles are inherited and some not
 Text-related and list-related properties are
inherited - color, font-size, font-family,
line-height, text-align, list-style, etc
 Box-related and positioning styles are not
inherited - width, height, border, margin,
padding, position, float, etc
 <a> elements do not inherit color and text-
decoration
101

Style Sheets Syntax
 Stylesheets consist of rules, selectors,
declarations, properties and values
 Selectors are separated by commas
 Declarations are separated by semicolons
 Properties and values are separated by colons
102
h1,h2,h3 { color: green; font-weight: bold; }
http://css.maxdesign.com.au/

Selectors
 Selectors determine which element the rule
applies to:
 All elements of specific type (tag)
 Those that mach a specific attribute (id, class)
 Elements may be matched depending on how
they are nested in the document tree (HTML)
 Examples:
103
.header a { color: green }
#menu>li { padding-top: 8px }

Selectors (2)
 Three primary kinds of selectors:
 By tag (type selector):
 By element id:
 By element class name (only for HTML):
 Selectors can be combined with commas:
This will match <h1> tags, elements with class
link, and element with id top-link
104
h1 { font-family: verdana,sans-serif; }
#element_id { color: #ff0000; }
.myClass {border: 1px solid red}
h1, .link, #top-link {font-weight: bold}

Selectors (3)
 Pseudo-classes define state
 :hover, :visited, :active , :lang
 Pseudo-elements define element "parts" or are
used to generate content
 :first-line , :before, :after
105
a:hover { color: red; }
p:first-line { text-transform: uppercase; }
.title:before { content: "»"; }
.title:after { content: "«"; }

Selectors (4)
 Match relative to element placement:
This will match all <a> tags that are inside of <p>
 * – universal selector (avoid or use with care!):
This will match all descendants of <p> element
 + selector – used to match “next sibling”:
This will match all siblings with class name link
that appear immediately after <img> tag 106
p a {text-decoration: underline}
p * {color: black}
img + .link {float:right}

Selectors (5)
 > selector – matches direct child nodes:
This will match all elements with class error, direct
children of <p> tag
 [ ] – matches tag attributes by regular expression:
This will match all <img> tags with alt attribute
containing the word logo
 .class1.class2 (no space) - matches elements
with both (all) classes applied at the same time
107
p > .error {font-size: 8px}
img[alt~=logo] {border: none}

Values in the CSS Rules
 Colors are set in RGB format (decimal or hex):
 Example: #a0a6aa = rgb(160, 166, 170)
 Predefined color aliases exist: black, blue, etc.
 Numeric values are specified in:
 Pixels, ems, e.g. 12px , 1.4em
 Points, inches, centimeters, millimeters
 E.g. 10pt , 1in, 1cm, 1mm
 Percentages, e.g. 50%
 Percentage of what?...
 Zero can be used with no unit: border: 0;
108

Default Browser Styles
 Browsers have default CSS styles
 Used when there is no CSS information or any
other style information in the document
 Caution: default styles differ in browsers
 E.g. margins, paddings and font sizes differ
most often and usually developers reset them
109
* { margin: 0; padding: 0; }
body, h1, p, ul, li { margin: 0; padding: 0; }

Linking HTML and CSS
 HTML (content) and CSS (presentation) can be
linked in three ways:
 Inline: the CSS rules in the style attribute
 No selectors are needed
 Embedded: in the <head> in a <style> tag
 External: CSS rules in separate file (best)
 Usually a file with .css extension
 Linked via <link rel="stylesheet" href=…> tag
or @import directive in embedded CSS block
110

Linking HTML and CSS (2)
 Using external files is highly recommended
 Simplifies the HTML document
 Improves page load speed as the CSS file is
cached
111

Inline Styles: Example
112
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0
Transitional//EN" "http://www.w3.org/TR/xhtml1/
DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>Inline Styles</title>
</head>
<body>
<p>Here is some text</p>

<p style="font-size: 20pt">Here is some
more text</p>
<p style="font-size: 20pt;color:
#0000FF" >Even more text</p>
</body>
</html>
inline-styles.html

Inline Styles: Example
113
Transitional//EN" "http://www.w3.org/TR/xhtml1/
DTD/xhtml1-transitional.dtd">
<head>
<title>Inline Styles</title>
</head>
<body>
<p>Here is some text</p>

<p style="font-size: 20pt">Here is some
more text</p>
<p style="font-size: 20pt;color:
#0000FF" >Even more text</p>
</body>
</html>
inline-styles.html

CSS Cascade (Precedence)
 There are browser, user and author stylesheets
with "normal" and "important" declarations
 Browser styles (least priority)
 Normal user styles
 Normal author styles (external, in head, inline)
 Important author styles
 Important user styles (max priority)
114
a { color: red !important ; }
http://www.slideshare.net/maxdesign/css-cascade-1658158

CSS Specificity
 CSS specificity is used to determine the
precedence of CSS style declarations with the
same origin. Selectors are what matters
 Simple calculation: #id = 100, .class = 10,
:pseudo = 10, [attr] = 10, tag = 1, * = 0
 Same number of points? Order matters.
 See also:
 http://www.smashingmagazine.com/2007/07/27/css-specificity-things-
you-should-know/
 http://css.maxdesign.com.au/selectutorial/advanced_conflict.htm
115

Embedded Styles
 Embedded in the HTML in the <style> tag:
 The <style> tag is placed in the <head>
section of the document
 type attribute specifies the MIME type
 MIME describes the format of the content
 Other MIME types include text/html,
image/gif, text/javascript …
 Used for document-specific styles
116

Embedded Styles: Example
117
Transitional//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-
transitional.dtd">
<head>
<title>Style Sheets</title>
em {background-color:#8000FF; color:white}
h1 {font-family:Arial, sans-serif}
p {font-size:18pt}
.blue {color:blue}
</style>
<head>
embedded-stylesheets.html

Embedded Styles: Example (2)
118
…
<body>
<h1 class="blue">A Heading</h1>
<p>Here is some text. Here is some text. Here
is some text. Here is some text. Here is some
text.</p>
<h1>Another Heading</h1>
<p class="blue">Here is some more text.
Here is some more text.</p>
<p class="blue">Here is some <em>more</em>
text. Here is some more text.</p>
</body>
</html>

…
<body>
<h1 class="blue">A Heading</h1>
<p>Here is some text. Here is some text. Here
is some text. Here is some text. Here is some
text.</p>
<h1>Another Heading</h1>
<p class="blue">Here is some more text.
Here is some more text.</p>
<p class="blue">Here is some <em>more</em>
text. Here is some more text.</p>
</body>
</html>
Embedded Styles: Example (3)
119

External CSS Styles
 External linking
 Separate pages can all use a shared style sheet
 Only modify a single file to change the styles across
your entire Web site (see http://www.csszengarden.com/)
 link tag (with a rel attribute)
 Specifies a relationship between current document
and another document
 link elements should be in the <head>
120
<link rel="stylesheet" type="text/css"
href="styles.css">

External CSS Styles (2)
@import
 Another way to link external CSS files
 Example:
 Ancient browsers do not recognize @import
 Use @import in an external CSS file to
workaround the IE 32 CSS file limit
121
@import url("styles.css");
/* same as */
@import "styles.css";
</style>

External Styles: Example
122
/* CSS Document */
a { text-decoration: none }
a:hover { text-decoration: underline;
color: red;
background-color: #CCFFCC }
li em { color: red;
font-weight: bold }
ul { margin-left: 2cm }
ul ul { text-decoration: underline;
margin-left: .5cm }
styles.css

External Styles: Example (2)
123
Transitional//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-
transitional.dtd">
<head>
<title>Importing style sheets</title>
<link type="text/css" rel="stylesheet"
href="styles.css" />
</head>
<body>
<h1>Shopping list for <em>Monday</em>:</h1>
<li>Milk</li>
…
external-styles.html

124
…
<li>Bread
<ul>
<li>White bread</li>
<li>Rye bread</li>
<li>Whole wheat bread</li>
</ul>
</li>
<li>Rice</li>
<li>Potatoes</li>
<li>Pizza <em>with mushrooms</em></li>
</ul>
<a href="http://food.com" title="grocery
store">Go to the Grocery store</a>
</body>
</html>

…
<li>Bread
<ul>
<li>White bread</li>
<li>Rye bread</li>
<li>Whole wheat bread</li>
</ul>
</li>
<li>Rice</li>
<li>Potatoes</li>
<li>Pizza <em>with mushrooms</em></li>
</ul>
<a href="http://food.com" title="grocery
store">Go to the Grocery store</a>
</body>
</html>
125

Text-related CSS Properties
 color – specifies the color of the text
 font-size – size of font: xx-small, x-small,
small, medium, large, x-large, xx-large,
smaller, larger or numeric value
 font-family – comma separated font names
 Example: verdana, sans-serif, etc.
 The browser loads the first one that is available
 There should always be at least one generic font
 font-weight can be normal, bold, bolder,
lighter or a number in range [100 … 900]
126

CSS Rules for Fonts (2)
 font-style – styles the font
 Values: normal, italic, oblique
 text-decoration – decorates the text
 Values: none, underline, line-trough,
overline, blink
 text-align – defines the alignment of text or
other content
 Values: left, right, center, justify
127

Shorthand Font Property
 font
 Shorthand rule for setting multiple font
properties at the same time
is equal to writing this:
128
font:italic normal bold 12px/16px verdana
font-style: italic;
font-variant: normal;
font-weight: bold;
font-size: 12px;
line-height: 16px;
font-family: verdana;

Backgrounds
 background-image
 URL of image to be used as background, e.g.:
 background-color
 Using color and image and the same time
 background-repeat
 repeat-x, repeat-y, repeat, no-repeat
 background-attachment
 fixed / scroll
129
background-image:url("back.gif");

Backgrounds (2)
 background-position: specifies vertical and
horizontal position of the background image
 Vertical position: top, center, bottom
 Horizontal position: left, center, right
 Both can be specified in percentage or other
numerical values
 Examples:
130
background-position: top left;
background-position: -5px 50%;

Background Shorthand Property
 background: shorthand rule for setting
background properties at the same time:
is equal to writing:
 Some browsers will not apply BOTH color and
image for background if using shorthand rule
131
background: #FFF0C0 url("back.gif") no-repeat
fixed top;
background-color: #FFF0C0;
background-image: url("back.gif");
background-repeat: no-repeat;
background-attachment: fixed;
background-position: top;

Background-image or <img>?
 Background images allow you to save many
image tags from the HTML
 Leads to less code
 More content-oriented approach
 All images that are not part of the page
content (and are used only for "beautification")
should be moved to the CSS
132

Borders
 border-width: thin, medium, thick or
numerical value (e.g. 10px)
 border-color: color alias or RGB value
 border-style: none, hidden, dotted,
dashed, solid, double, groove, ridge,
inset, outset
 Each property can be defined separately for
left, top, bottom and right
 border-top-style, border-left-color, …
133

Border Shorthand Property
 border: shorthand rule for setting border
properties at once:
is equal to writing:
 Specify different borders for the sides via
shorthand rules: border-top, border-left,
border-right, border-bottom
 When to avoid border:0 134
border: 1px solid red
border-width:1px;
border-color:red;
border-style:solid;

Width and Height
 width – defines numerical value for the width
of element, e.g. 200px
 height – defines numerical value for the
height of element, e.g. 100px
 By default the height of an element is defined
by its content
 Inline elements do not apply height, unless you
change their display style.
135

Margin and Padding
 margin and padding define the spacing
around the element
 Numerical value, e.g. 10px or -5px
 Can be defined for each of the four sides
separately - margin-top, padding-left, …
 margin is the spacing outside of the border
 padding is the spacing between the border and
the content
 What are collapsing margins?
136

Margin and Padding: Short Rules
 margin: 5px;
 Sets all four sides to have margin of 5 px;
 margin: 10px 20px;
 top and bottom to 10px, left and right to 20px;
 margin: 5px 3px 8px;
 top 5px, left/right 3px, bottom 8px
 margin: 1px 3px 5px 7px;
 top, right, bottom, left (clockwise from top)
 Same for padding
137

IE Quirks Mode
 When using quirks
mode (pages with no
DOCTYPE or with a
HTML 4Transitional
DOCTYPE), Internet
Explorer violates the
box model standard
139

Positioning
 position: defines the positioning of the
element in the page content flow
 The value is one of:
 static (default)
 relative – relative position according to where
the element would appear with static position
 absolute – position according to the innermost
positioned parent element
 fixed – same as absolute, but ignores page
scrolling
140

Positioning (2)
 MarginVS relative positioning
 Fixed and absolutely positioned elements do
not influence the page normal flow and usually
stay on top of other elements
 Their position and size is ignored when
calculating the size of parent element or
position of surrounding elements
 Overlaid according to their z-index
 Inline fixed or absolutely positioned elements
can apply height like block-level elements
141

Positioning (3)
 top, left, bottom, right: specifies offset of
absolute/fixed/relative positioned element as
numerical values
 z-index : specifies the stack level of
positioned elements
 Understanding stacking context
142
Each positioned element creates a stacking
context.
Elements in different stacking contexts are
overlapped according to the stacking order of
their containers. For example, there is no way
for #A1 and #A2 (children of #A) to be placed
over #B without increasing the z-index of #A.

Inline element positioning
 vertical-align: sets the vertical-alignment
of an inline element, according to the line
height
 Values: baseline, sub, super, top, text-top,
middle, bottom, text-bottom or numeric
 Also used for content of table cells (which apply
middle alignment by default)
143

Float
 float: the element “floats” to one side
 left: places the element on the left and
following content on the right
 right: places the element on the right and
following content on the left
 floated elements should come before the
content that will wrap around them in the code
 margins of floated elements do not collapse
 floated inline elements can apply height
144

Float (2)
 How floated elements are positioned
145

Clear
 clear
 Sets the sides of the element where other
floating elements are NOT allowed
 Used to "drop" elements below floated ones or
expand a container, which contains only floated
children
 Possible values: left, right, both
 Clearing floats
 additional element (<div>) with a clear style
146

Clear (2)
 Clearing floats (continued)
 :after { content: ""; display: block;
clear: both; height: 0; }
 Triggering hasLayout in IE expands a container
of floated elements
 display: inline-block;
 zoom: 1;
147

Opacity
 opacity: specifies the opacity of the element
 Floating point number from 0 to 1
 For old Mozilla browsers use –moz-opacity
 For IE use filter:alpha(opacity=value)
where value is from 0 to 100; also, "binary and
script behaviors" must be enabled and
hasLayout must be triggered, e.g. with zoom:1
148

Visibility
 visibility
 Determines whether the element is visible
 hidden: element is not rendered, but still
occupies place on the page (similar to
opacity:0)
 visible: element is rendered normally
149

Display
 display: controls the display of the element
and the way it is rendered and if breaks should
be placed before and after the element
 inline: no breaks are placed before and after
(<span> is an inline element)
 block: breaks are placed before AND after the
element (<div> is a block element)
150

Display (2)
 display: controls the display of the element
and the way it is rendered and if breaks should
be placed before and after the element
 none: element is hidden and its dimensions are
not used to calculate the surrounding elements
rendering (differs from visibility: hidden!)
 There are some more possible values, but not
all browsers support them
 Specific displays like table-cell and table-row
151

Overflow
 overflow: defines the behavior of element when
content needs more space than you have specified by
the size properties or for other reasons.Values:
 visible (default) – content spills out of the
element
 auto - show scrollbars if needed
 scroll – always show scrollbars
 hidden – any content that cannot fit is clipped
152

Other CSS Properties
 cursor: specifies the look of the mouse cursor
when placed over the element
 Values: crosshair, help, pointer,
progress, move, hair, col-resize, row-
resize, text, wait, copy, drop, and others
 white-space – controls the line breaking of
text.Value is one of:
 nowrap – keeps the text on one line
 normal (default) – browser decides whether to
brake the lines if needed
153

Benefits of using CSS
 More powerful formatting than using
presentation tags
 Your pages load faster, because browsers
cache the .css files
 Increased accessibility, because rules can be
defined according given media
 Pages are easier to maintain and update
154

Maintenance Example
155
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
Title
Some random
text here. You
can’t read it
anyway! Har har
har! Use Css.
CSS
file

CSS DevelopmentTools
 Visual Studio – CSS Editor
156

CSS DevelopmentTools (3)
 Firebug – add-on to Firefox used to examine
and adjust CSS and HTML
157

CSS DevelopmentTools (4)
 IE DeveloperToolbar – add-on to IE used to
examine CSS and HTML (press [F12])
158

Table of Contents
 What is DHTML?
 DHTMLTechnologies
 XHTML, CSS, JavaScript, DOM
160

 Introduction to JavaScript
 What is JavaScript
 Implementing JavaScript into Web pages
 In <head> part
 In <body> part
 In external .js file
161

 JavaScript Syntax
 JavaScript operators
 JavaScript DataTypes
 JavaScript Pop-up boxes
 alert, confirm and prompt
 Conditional and switch statements, loops and
functions
 Document Object Model
 Debugging in JavaScript
162

DHTML
Dynamic Behavior at the Client Side

What is DHTML?
 Dynamic HTML (DHTML)
 Makes possible a Web page to react and change
in response to the user’s actions
 DHTML = HTML + CSS + JavaScript
164
DHTML
XHTML CSS JavaScript DOM

DTHML = HTML + CSS + JavaScript
 HTML defines Web sites content through
semantic tags (headings, paragraphs, lists, …)
 CSS defines 'rules' or 'styles' for presenting
every aspect of an HTML document
 Font (family, size, color, weight, etc.)
 Background (color, image, position, repeat)
 Position and layout (of any object on the page)
 JavaScript defines dynamic behavior
 Programming logic for interaction with the
user, to handle events, etc.
165

JavaScript
Dynamic Behavior in a Web Page

JavaScript
 JavaScript is a front-end scripting language
developed by Netscape for dynamic content
 Lightweight, but with limited capabilities
 Can be used as object-oriented language
 Client-side technology
 Embedded in your HTML page
 Interpreted by theWeb browser
 Simple and flexible
 Powerful to manipulate the DOM
167

JavaScript Advantages
 JavaScript allows interactivity such as:
 Implementing form validation
 React to user actions, e.g. handle keys
 Changing an image on moving mouse over it
 Sections of a page appearing and disappearing
 Content loading and changing dynamically
 Performing complex calculations
 Custom HTML controls, e.g. scrollable table
 Implementing AJAX functionality
168

What Can JavaScript Do?
 Can handle events
 Can read and write HTML elements and
modify the DOM tree
 Can validate form data
 Can access / modify browser cookies
 Can detect the user’s browser and OS
 Can be used as object-oriented language
 Can handle exceptions
 Can perform asynchronous server calls (AJAX)
169

The First Script
first-script.html
170
<html>
<body>
alert('Hello JavaScript!');
</script>
</body>
</html>

Another Small Example
small-example.html
171
<html>
<body>
document.write('JavaScript rulez!');
</script>
</body>
</html>

Using JavaScript Code
 The JavaScript code can be placed in:
 <script> tag in the head
 <script> tag in the body – not recommended
 External files, linked via <script> tag the head
 Files usually have .js extension
 Highly recommended
 The .js files get cached by the browser
172
<script src="scripts.js" type="text/javscript">
<!– code placed here will not be executed! -->
</script>

JavaScript – When is Executed?
 JavaScript code is executed during the page
loading or when the browser fires an event
 All statements are executed at page loading
 Some statements just define functions that can
be called later
 Function calls or code can be attached as
"event handlers" via tag attributes
 Executed when the event is fired by the browser
173
<img src="logo.gif" onclick="alert('clicked!')" />

<html>
<head>
function test (message) {
alert(message);
}
</script>
</head>
<body>
<img src="logo.gif"
onclick="test('clicked!')" />
</body>
</html>
Calling a JavaScript Function
from Event Handler – Example
image-onclick.html
174

Using External Script Files
 Using external script files:
 External JavaScript file:
175
<html>
<head>
<script src="sample.js" type="text/javascript">
</script>
</head>
<body>
<button onclick="sample()" value="Call JavaScript
function from sample.js" />
</body>
</html>
function sample() {
alert('Hello from sample.js!')
}
external-JavaScript.html
sample.js
The <script> tag is always empty.

JavaScript Syntax
 The JavaScript syntax is similar to C# and Java
 Operators (+, *, =, !=, &&, ++, …)
 Variables (typeless)
 Conditional statements (if, else)
 Loops (for, while)
 Arrays (my_array[]) and associative arrays
(my_array['abc'])
 Functions (can return value)
 Function variables (like the C# delegates)
177

DataTypes
 JavaScript data types:
 Numbers (integer, floating-point)
 Boolean (true / false)
 String type – string of characters
 Arrays
 Associative arrays (hash tables)
178
var myName = "You can use both single or double
quotes for strings";
var my_array = [1, 5.3, "aaa"];
var my_hash = {a:2, b:3, c:"text"};

Everything is Object
 Every variable can be considered as object
 For example strings and arrays have member
functions:
179
var test = "some string";
alert(test[7]); // shows letter 'r'
alert(test.charAt(5)); // shows letter 's'
alert("test".charAt(1)); //shows letter 'e'
alert("test".substring(1,3)); //shows 'es'
var arr = [1,3,4];
alert (arr.length); // shows 3
arr.push(7); // appends 7 to end of array
alert (arr[3]); // shows 7
objects.html

String Operations
 The + operator joins strings
 What is "9" + 9?
 Converting string to number:
180
string1 = "fat ";
string2 = "cats";
alert(string1 + string2); // fat cats
alert("9" + 9); // 99
alert(parseInt("9") + 9); // 18

Arrays Operations and Properties
 Declaring new empty array:
 Declaring an array holding few elements:
 Appending an element / getting the last element:
 Reading the number of elements (array length):
 Finding element's index in the array:
181
var arr = new Array();
var arr = [1, 2, 3, 4, 5];
arr.push(3);
var element = arr.pop();
arr.length;
arr.indexOf(1);

Standard Popup Boxes
 Alert box with text and [OK] button
 Just a message shown in a dialog box:
 Confirmation box
 Contains text, [OK] button and [Cancel] button:
 Prompt box
 Contains text, input field with default value:
182
alert("Some text here");
confirm("Are you sure?");
prompt ("enter amount", 10);

Sum of Numbers – Example
sum-of-numbers.html
183
<html>
<head>
<title>JavaScript Demo</title>
function calcSum() {
value1 =
parseInt(document.mainForm.textBox1.value);
value2 =
parseInt(document.mainForm.textBox2.value);
sum = value1 + value2;
document.mainForm.textBoxSum.value = sum;
}
</script>
</head>

Sum of Numbers – Example (2)
sum-of-numbers.html (cont.)
184
<body>
<form name="mainForm">
<input type="text" name="textBox1" /> <br/>
<input type="text" name="textBox2" /> <br/>
<input type="button" value="Process"
onclick="javascript: calcSum()" />
<input type="text" name="textBoxSum"
readonly="readonly"/>
</form>
</body>
</html>

JavaScript Prompt – Example
prompt.html
185
price = prompt("Enter the price", "10.00");
alert('Price + VAT = ' + price * 1.2);

Greater than
<=
Symbol Meaning
>
< Less than
>= Greater than or equal to
Less than or equal to
== Equal
!= Not equal
Conditional Statement (if)
186
unitPrice = 1.30;
if (quantity > 100) {
unitPrice = 1.20;
}

Conditional Statement (if) (2)
 The condition may be of Boolean or integer type:
187
var a = 0;
var b = true;
if (typeof(a)=="undefined" || typeof(b)=="undefined") {
document.write("Variable a or b is undefined.");
}
else if (!a && b) {
document.write("a==0; b==true;");
} else {
document.write("a==" + a + "; b==" + b + ";");
}
conditional-statements.html

Switch Statement
 The switch statement works like in C#:
188
switch (variable) {
case 1:
// do something
break;
case 'a':
// do something else
break;
case 3.14:
// another code
break;
default:
// something completely different
}
switch-statements.html

Loops
 Like in C#
 for loop
 while loop
 do … while loop
189
var counter;
for (counter=0; counter<4; counter++) {
alert(counter);
}
while (counter < 5) {
alert(++counter);
} loops.html

Functions
 Code structure – splitting code into parts
 Data comes in, processed, result returned
190
function average(a, b, c)
{
var total;
total = a+b+c;
return total/3;
}
Parameters come
in here.
Declaring variables
is optional.Type is
never declared.
Value returned
here.

Function Arguments
and ReturnValue
 Functions are not required to return a value
 When calling function it is not obligatory to
specify all of its arguments
 The function has access to all the arguments
passed via arguments array
191
function sum() {
var sum = 0;
for (var i = 0; i < arguments.length; i ++)
sum += parseInt(arguments[i]);
return sum;
}
alert(sum(1, 2, 4)); functions-demo.html

Document Object Model (DOM)
 Every HTML element is accessible via the
JavaScript DOM API
 Most DOM objects can be manipulated by the
programmer
 The event model lets a document to react when
the user does something on the page
 Advantages
 Create interactive pages
 Updates the objects of a page without reloading it
193

Accessing Elements
 Access elements via their ID attribute
 Via the name attribute
 Via tag name
 Returns array of descendant <img> elements of
the element "el"
194
var elem = document.getElementById("some_id")
var arr = document.getElementsByName("some_name")
var imgTags = el.getElementsByTagName("img")

DOM Manipulation
 Once we access an element, we can read and
write its attributes
195
function change(state) {
var lampImg = document.getElementById("lamp");
lampImg.src = "lamp_" + state + ".png";
var statusDiv =
document.getElementById("statusDiv");
statusDiv.innerHTML = "The lamp is " + state";
}
…
<img src="test_on.gif" onmouseover="change('off')"
onmouseout="change('on')" />
DOM-manipulation.html

Common Element Properties
 Most of the properties are derived from the
HTML attributes of the tag
 E.g. id, name, href, alt, title, src, etc…
 style property – allows modifying the CSS
styles of the element
 Corresponds to the inline style of the element
 Not the properties derived from embedded or
external CSS rules
 Example: style.width, style.marginTop,
style.backgroundImage
196

Common Element Properties (2)
 className – the class attribute of the tag
 innerHTML – holds all the entire HTML code
inside the element
 Read-only properties with information for the
current element and its state
 tagName, offsetWidth, offsetHeight,
scrollHeight, scrollTop, nodeType, etc…
197

Accessing Elements through
the DOMTree Structure
 We can access elements in the DOM through
some tree manipulation properties:
 element.childNodes
 element.parentNode
 element.nextSibling
 element.previousSibling
 element.firstChild
 element.lastChild
198

Accessing Elements through
the DOMTree – Example
 Warning: may not return what you expected
due to Browser differences
199
var el = document.getElementById('div_tag');
alert (el.childNodes[0].value);
alert (el.childNodes[1].
getElementsByTagName('span').id);
…
<div id="div_tag">
<input type="text" value="test text" />
<div>
<span id="test">test span</span>
</div>
</div> accessing-elements-demo.html

The HTML DOM Event Model
 JavaScript can register event handlers
 Events are fired by the Browser and are sent to
the specified JavaScript event handler function
 Can be set with HTML attributes:
 Can be accessed through the DOM:
201
<img src="test.gif" onclick="imageClicked()" />
var img = document.getElementById("myImage");
img.onclick = imageClicked;

The HTML DOM Event Model (2)
 All event handlers receive one parameter
 It brings information about the event
 Contains the type of the event (mouse click, key
press, etc.)
 Data about the location where the event has
been fired (e.g. mouse coordinates)
 Holds a reference to the event sender
 E.g. the button that was clicked
202

The HTML DOM Event Model (3)
 Holds information about the state of [Alt], [Ctrl]
and [Shift] keys
 Some browsers do not send this object, but
place it in the document.event
 Some of the names of the event’s object
properties are browser-specific
203

Common DOM Events
 Mouse events:
 onclick, onmousedown, onmouseup
 onmouseover, onmouseout, onmousemove
 Key events:
 onkeypress, onkeydown, onkeyup
 Only for input fields
 Interface events:
 onblur, onfocus
 onscroll
204

Common DOM Events (2)
 Form events
 onchange – for input fields
 onsubmit
 Allows you to cancel a form submission
 Useful for form validation
 Miscellaneous events
 onload, onunload
 Allowed only for the <body> element
 Fires when all content on the page was loaded /
unloaded 205

onload Event – Example
 onload event
206
<html>
<head>
function greet() {
alert("Loaded.");
}
</script>
</head>
<body onload="greet()" >
</body>
</html>
onload.html

Built-in Browser Objects
 The browser provides some read-only data via:
 window
 The top node of the DOM tree
 Represents the browser's window
 document
 holds information the current loaded document
 screen
 Holds the user’s display properties
 browser
 Holds information about the browser
208

DOM Hierarchy – Example
209
window
navigator screen document history location
form
button form
form

Opening New Window – Example
 window.open()
210
var newWindow = window.open("", "sampleWindow",
"width=300, height=100, menubar=yes,
status=yes, resizable=yes");
newWindow.document.write(
"<html><head><title>
Sample Title</title>
</head><body><h1>Sample
Text</h1></body>");
newWindow.status =
"Hello folks";
window-open.html

The Navigator Object
211
alert(window.navigator.userAgent);
The navigator in the
browser window
The userAgent
(browser ID)
The browser
window

The Screen Object
 The screen object contains information about
the display
212
window.moveTo(0, 0);
x = screen.availWidth;
y = screen.availHeight;
window.resizeTo(x, y);

Document and Location
 document object
 Provides some built-in arrays of specific objects
on the currently loaded Web page
 document.location
 Used to access the currently open URL or
redirect the browser
213
document.links[0].href = "yahoo.com";
document.write(
"This is some <b>bold text</b>");
document.location = "http://www.yahoo.com/";

FormValidation – Example
214
function checkForm()
{
var valid = true;
if (document.mainForm.firstName.value == "") {
alert("Please type in your first name!");
document.getElementById("firstNameError").
style.display = "inline";
valid = false;
}
return valid;
}
…
<form name="mainForm" onsubmit="return checkForm()">
<input type="text" name="firstName" />
…
</form>
form-validation.html

The Math Object
 The Math object provides some mathematical
functions
215
for (i=1; i<=20; i++) {
var x = Math.random();
x = 10*x + 1;
x = Math.floor(x);
document.write(
"Random number (" +
i + ") in range " +
"1..10 --> " + x +
"<br/>");
}
math.html

The Date Object
 The Date object provides date / calendar
functions
216
var now = new Date();
var result = "It is now " + now;
document.getElementById("timeField")
.innerText = result;
...
<p id="timeField"></p>
dates.html

Timers: setTimeout()
 Make something happen (once) after a fixed
delay
217
var timer = setTimeout('bang()', 5000);
clearTimeout(timer);
5 seconds after this statement
executes, this function is called
Cancels the timer

Timers: setInterval()
 Make something happen repeatedly at fixed
intervals
218
var timer = setInterval('clock()', 1000);
clearInterval(timer);
This function is called
continuously per 1 second.
Stop the timer.

Timer – Example
219
function timerFunc() {
var now = new Date();
var hour = now.getHours();
var min = now.getMinutes();
var sec = now.getSeconds();
document.getElementById("clock").value =
"" + hour + ":" + min + ":" + sec;
}
setInterval('timerFunc()', 1000);
</script>
<input type="text" id="clock" />
timer-demo.html

Debugging JavaScript
 Modern browsers have JavaScript console
where errors in scripts are reported
 Errors may differ across browsers
 Several tools to debug JavaScript
 Microsoft Script Editor
 Add-on for Internet Explorer
 Supports breakpoints, watches
 JavaScript statement debugger; opens the script
editor
221

Firebug
 Firebug – Firefox add-on for debugging
JavaScript, CSS, HTML
 Supports breakpoints, watches, JavaScript
console editor
 Very useful for CSS and HTML too
 You can edit all the document real-time: CSS,
HTML, etc
 Shows how CSS rules apply to element
 Shows Ajax requests and responses
 Firebug is written mostly in JavaScript
222

JavaScript Console Object
 The console object exists only if there is a
debugging tool that supports it
 Used to write log messages at runtime
 Methods of the console object:
 debug(message)
 info(message)
 log(message)
 warn(message)
 error(message)
224

HTML, CSS and JavaScript
Basics
ThankYou
 dipenparmar12@gmail.com
 https://www.youtube.com/channel/UChvhhqqFl23yYwq54ykoOQQ
 Dipen Parmar

Html css java script basics All about you need

Recommended

More Related Content

What's hot (20)

Viewers also liked (20)

Similar to Html css java script basics All about you need (20)

More from Dipen Parmar (11)

Recently uploaded (20)

Html css java script basics All about you need

Editor's Notes
