HTML5, CSS3, and other fancy buzzwords

HTML5, CSS3 and
other fancy buzzwords
Bringing sexy back to the mobile web

What’s Up?
Mohammad (Mo) Jangda

batmoo@gmail.com
mohammad.jangda@vortexmobile.ca

http://digitalize.ca
@mjangda

HTML5
Move over Jesse James Garret!
We've found the new AJAX!

What exactly is
an HTML5?
• HTML4 all grown up?

• xHTML's way cooler cousin?

• 5 Highly Trained Militant Lemurs? Steve Jobs
Inventor of HTML5

a bit of HTML
+
a dash of CSS
+
a whole sprinkling of JavaScript

The HTML5 Family
Semantics Geolocation

Forms Ofﬂine

Presentation Storage
Styling
Transforms
Animations
Web
Workers
Rich Media
Audio
Video Web Sockets
Canvas

Minus some legitimate & illegitimate cousins...

Strong Semantics
Good markup is healthy markup.

Richness without
cost
Add all the whiz, bang, and ﬁreworks without having to
rely on 3rd party libraries and plugins.

Stuff that took images and extra markup and hours to
perfect, now available through a CSS property or two.

New levels of
interactivity
APIs that help us build more powerful, feature-rich
mobile webapps.

Helping bridge the gap between native and web.

What’s it mean for
the Mobile Web?

• It's ﬁnally growing up
• WebApps are better, smarter, sexier
• WebApps can do more with less
• WebApps can do the same, if not more
than Native Apps

HTML5, CSS3, and other fancy buzzwords

<video src=“movie.mp4” />

<audio src=“sound.wav” />

Simple
CODE

<video width=”320” height=”240” poster=”poster.png”>
<source src="video.m4v" type='video/mp4; codecs="avc1.42E01E,
mp4a.40.2"' />
<source src="video.webm" type='video/webm; codecs="vp8,
vorbis"' />
<source src="video.ogv" type='video/ogg; codecs="theora, vorbis"' /
>
<object>


<p>Download the <a href="video.mp4">video</a></p>
</object>
</video>
CODE

Advanced

Desktops have all the fun!
Player is customizable and programmatically accessible
through javascript (i.e. play, pause, etc.)

Not the case on mobile devices
(iPad excluded)

Most devices
ofﬂoad audio and
video playback to
their native media
players...which is a
good thing

Oh, and support kinda sucks...

YAUFW!
(Yet Another Unnecessary Format War)

<div class="qzForm roundedcornr_box_812460">

<div class="roundedcornr_top_812460">

<div></div>

</div>

<div class="roundedcornr_content_812460">

Your content goes here!

</div>
<div class="roundedcornr_bottom_812460">

<div></div>
</div>
</div>

<style>

/* Rounded corner for registration tab */
.roundedcornr_box_812460 {

background: url(../images/rounded/roundedcornr_812460_tl.png) no-repeat top left;
}
.roundedcornr_top_812460 {

background: url(../images/rounded/roundedcornr_812460_tr.png) no-repeat top right;
}
.roundedcornr_bottom_812460 {

background: url(../images/rounded/roundedcornr_812460_bl.png) no-repeat bottom left;
}
.roundedcornr_bottom_812460 div {

background: url(../images/rounded/roundedcornr_812460_br.png) no-repeat bottom right;
}
.roundedcornr_content_812460 {

background: url(../images/rounded/roundedcornr_812460_r.png) top right repeat-y;
}

.roundedcornr_top_812460 div,.roundedcornr_top_812460,
.roundedcornr_bottom_812460 div, .roundedcornr_bottom_812460 {

width: 100%;

height: 15px;

font-size: 1px;
}
.roundedcornr_content_812460, .roundedcornr_bottom_812460 {

/*margin-top: -19px;*/
}
CODE

.roundedcornr_content_812460 { padding: 0 15px; }
</style>

Pre-CSS3: Rounded Corners

<div class=“rounded”>

This is content
</div>

<style type=“text/css”>

.rounded {

border-radius: 5px;

border: 1px solid #111;

}
</style>
CODE

CSS3: Rounded Corners

Amazing!
Yes, we just went from 3 billion lines of code...

...to just under 10.

Some of the fancy new properties:
Rounded corners:
border-radius

Drop shadows:
box-shadow & text-shadow

Multiple columns:
column-count & column-gap

Transparent backgrounds:
rgba

Multiple backgrounds

Background gradients

Because CSS3 is not yet a ﬁnalized
spec, base properties don’t work in
most browsers.

Instead, you have to use the
proprietary preﬁx for each browser.

-moz-border-radius (for Fennec / FF)

-o-border-radius (for Opera Mobile)
border-radius
-webkit-border-radius (in Mobile
Safari, Android, webOS, BB6)

-ms-border-radius (in IE Mobile)

Full of sizzle-y goodness.
Well, close enough.

Attribute pattern-matching

starts with
[rel^=”awesome”]

ends with
[title$=”amazing”]

contains
[name*=”super”]

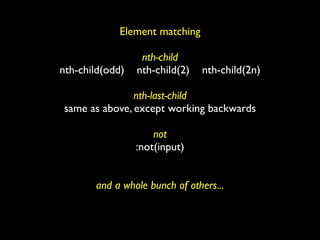

Element matching

nth-child
nth-child(odd) nth-child(2) nth-child(2n)

nth-last-child
same as above, except working backwards

not
:not(input)

and a whole bunch of others...

#B
ox
1

Feelin’ Tipsy, Mr. Box?

#Box1 {
transform: rotate(45deg);
}

#Box1
#Box1

Feelin’ Out of Place, Mr. Box?

#Box1 {
transform: translate(10px, 10px);
}

#Box1
#Box1

Feelin’ (Vertically) Out of Place, Mr. Box?

#Box1 {
transform: translateY(10px);
}

#Box1
#Box1

Feelin’ (Horizontally) Out of Place, Mr. Box?

#Box1 {
transform: translateX(10px);
}

#Box1

Feelin’ a little bloated, Mr. Box?

#Box1 {
transform: scale(2);
}

#Box1

Feelin’ weak, Mr. Box?

#Box1 {
transform: scale(0.5);
}

#Box1

#Box1

How’s the weather up there, Mr. Box? Ate too much, Mr. Box?

#Box1 { #Box1 {
transform: scaleY(2); transform: scaleX(2);
} }

View (a)skew , Mr. Box?

#Box1 {
transform: skew(-30deg, 30deg);
}

What about those cool 3D
transforms in Toy Story?
iPhone-only at this point.
(though, possibly BlackBerry 6 as well)

Transform in Z-space using Z properties.

scaleZ
rotateZ
rotate3D
translateZ

Are images dead?
Unlikely.

CSS3 Transition &
Animation

JavaScript animations on mobile
devices are painful.
Like ﬁrst-crush-ditching-you-
for-your-best-friend-because-
he-has-a-newer-bike painful.

CSS animations are smoother,
faster, and require far less code.

And just for kicks, we’ll throw in
some hardware acceleration too.

As simple as adding a single
property!

transition: 1s;

Whenever a property for the transition-ready
element changes, the browser auto-tweens the
element for you!

#container {
transition: 1s;
}

#container:hover {
opacity: 0.4
}

Transition Properties

Which properties should be animated?
transition-property: color;
default: all

How long should the transition take?
transition-duration: 1s;
default: 0, which means no animation.
Required!

Should we wait a bit before starting?
transition-delay: 0.5s;
default: 0
Can be negative. Will start as if pre-animated.

Transition Properties (cont’d)

Which timing curve should we use?
transition-timing-function: ease-out;
default: ease

Other values:

linear
ease-in
ease-out
ease-in-out
cubic-bezier (custom-deﬁned)

Feeling lazy? Shorthand it.

p{
transition: color 1s ease-in 2s;
}

Feeling lazy? Shorthand it.

p{
transition: color 1s ease-in 2s;
}

Might change to:

p{
transition: color 1s/2s ease-in;
}

Want to make everything transition-ready?
(though, probably a bad idea)

Want to make everything transition-ready?
(though, probably a bad idea)

*{
transition: 1s;
}

Whenever possible, use classes instead of
direct CSS manipulation.

Whenever possible, use classes instead of
direct CSS manipulation.

Generally yields better performance.

What about complex animations?

Combine multiple transitions!

Deﬁne tween checkpoints and the
properties to be changed at each.

Deﬁne tween checkpoints and the
properties to be changed at each.
#box1.animated {
animation-name: goCrazy
}

@keyframes goCrazy {
0% {

}
33% {
left: 200px;
}
66% {
-webkit-transform: rotate(-90deg);
}

100% {
-webkit-transform: scale(2);
opacity: 0;
}
}

Animation Properties

Same as before
animation-duration: 1s;
animation-delay: 0.5s;
animation-timing-function: ease-out;

Which direction should animations run?
animation-direction: alternate;
default: normal;

Which direction should animations run?
animation-iteration-count: 4;
default: 1;
Use inﬁnite for a never-ending loop.

Let’s walk through a simple 3D
animation...

#Box1 #Box2

Remember Mr. Box?
Say Hello to Mrs. Box.

#Box1 #Box2

Let’s get animating!

#Box1 2xoB#

Flip horizontally

#Box1 2xoB#

Flip horizontally

transform: rotateY(180deg);

#Container

#xoB#
2Box1

#Container

#xoB#
2Box1

Re-position and wrap

#Container

#xoB#
2Box1


position: absolute;

position: relative;

#Container

#xoB#
2Box1


position: absolute;

#Container

#Box1
2 xoB

#Container

#Box1
2 xoB

Enable 3D animation

#Container

#Box1
2 xoB

Enable 3D animation

#container {
transform-style: preserve-3d;
transition: transform 1s;
}

reniatnoC#

1xoB#
#Box2

Get ﬂippy

#container:hover {
}

#container.ﬂipped {
}

<div id=”container” onclick=”this.className = ‘ﬂipped’”>
...
</div>

Because :hover and mobile don’t always get along...

#container.ﬂipped {
}

<div id=”container” onclick=”this.className = ‘ﬂipped’”>
...
</div>

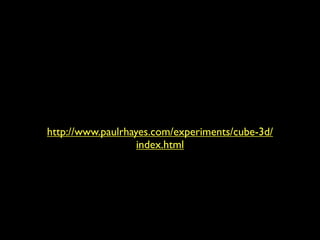

http://www.paulrhayes.com/experiments/cube-3d/
index.html

Exactly what it sounds
A blank slate with which you can do (almost) anything:

- create elements, shapes, lines, images, 3D things, text.
- modify them
- animate them
- etc.

if (navigator.geolocation) {

navigator.geolocation.getCurrentPosition(success, error);
} else {

alert('Your device doesn't support HTML5 geolocation');
}
CODE

function success( position ) {

alert( 'Latitude: ' + position.coords.latitude );

alert( 'Longitude: ' + position.coords.longitude );

// position exposes other properties as well:

// timestamp, accuracy, heading, altitude, etc.
}
CODE

function error( error ) {

alert( 'Sorry, we could’nt figure out your location!' );

console.error( 'Error', error.code, error.message );

// error codes:

// 1: location permission denied

// 2: location fetch failed

// 3: timeout

// 0: unknown
}
CODE

Not quite stalker-ish enough for you?

if(navigator.geolocation) {

watch = navigator.geolocation.watchPosition( success );

// Callback triggered whenever position changes

// Success callback could add a point to a map

// Or refresh a list of nearby locations

// Etc.
}

// Stop stalking
clearWatch(watch);
CODE

Users always have to allow access
to their location ﬁrst.

Stalking Best Practices
Always provide a fallback!

IP location can suck.

GPSes are awesome, but satellites can have bad days.

Have an [edit location] button AND manual entry

So, what can we do
with Location?

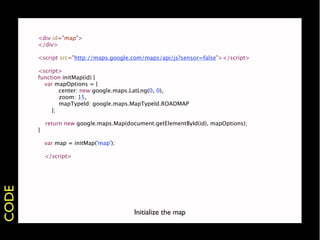

<div id="map">
</div>

<script src="http://maps.google.com/maps/api/js?sensor=false"></script>

<script>
function initMap(id) {

var mapOptions = {

center: new google.maps.LatLng(0, 0),

zoom: 15,

mapTypeId: google.maps.MapTypeId.ROADMAP

};

return new google.maps.Map(document.getElementById(id), mapOptions);
}

var map = initMap('map');

</script>
CODE

Initialize the map

http://maps.google.com/maps/api/geocode/json?
latlng=40.714224,-73.961452&sensor=false
CODE

Server-side (need proxy)

new google.maps.Geocoder();

geocoder.geocode( {

'latLng': new google.maps.LatLng(lat, lng)

},

function(results, status) {

for( var i = 0; i < data.results.length; i++ ) {

var result = results[i];

if(result.types[0] == 'locality' && result.types[1] == 'political') {

alert('Your city: ' + result.formatted_address);

}

}

}

);
CODE

Client-side

Connect with any of the 3 trillion
Location-based APIs out there.

Manifest Storage
Cache for storing HTML, CSS, JS Cache for storing data.
required for ofﬂine usage. 3 ﬂavours:

sessionStorage
localStorage
Web SQL

(and a few other types being
cooked up for the future...)

Beyond just for "I'm going
underground" scenarios.
Pre-loading of content improves speed and prevents
repeated roundtrips to server.

Cache heavy or unique data loads that are unlikely to
change, e.g. location information, favourites, etc.

Specify the manifest file
<!DOCTYPE HTML>
<html manifest="offline-manifest">

offline-manifest file

CACHE MANIFEST
index.html
help.html
style/main.css
images/logo.png
images/cupcakes.png
CODE

sessionStorage.haveMessage = true;

localStorage.messages = [
Window 1 ‘Hello World’
, ‘Goodbye World’
]

Window 2

sessionStorage.haveMessage
=> true
Window 1 localStorage.messages
=> [ ‘Hello World’, ‘Goodbye World’ ]

sessionStorage.haveMessage
=> null
Window 2 localStorage.messages
=> [ ‘Hello World’, ‘Goodbye World’ ]

Web SQL
Full-ﬂedged SQLLite database in the browser!

// Basic API methods

db = openDatabase( name, version );

db.transaction( callback );

transaction.executeSql( sql, values, success, error );
CODE

// Create database connection
// @params: name, version, display name, size in bytes
var db = openDatabase('bakery', '1.0', 'My Bakery', 1048576);
CODE

// Create table
db.transaction(function(trans) {
trans.executeSql('CREATE TABLE IF NOT EXISTS Cupcakes (name TEXT,
description TEXT)', []);
});
CODE

// Add entries

trans.executeSql('INSERT INTO Cupcakes VALUES (?, ?)', ['Vanilla', 'Good ol vanilla!']);
trans.executeSql('INSERT INTO Cupcakes VALUES (?, ?)', ['Chocolate', 'Good ol chocolate!']);
});
CODE

// Select entries

trans.executeSql(‘SELECT * FROM Cupcakes’, [], function(trans, results) {

for(var i = 0; i < results.rows.length; i++) {

var cupcake = results.rows.item(i);

document.getElement('cupcakes').innerHTML += '<li>' + cupcake.name + ':</strong> ' + cucpake.description + '</li>';

}

alert('We've got ' + results.rows.length + ' cupcake(s)');

});
});
CODE

sessionStorage
vs.
localStorage
vs.
Web SQL

Depends on the speciﬁcity
and complexity of your use
cases.
sessionStorage: Cupcake
localStorage: Slice of cake
Web SQL: Multi-tiered wedding cake

(Though, the last two can vary depending on your views on SQL / noSQL)

Gmail Web SQL database
Recent messages are pre-fetched. Certain data (labels) is pre-fetched.
Requires force refresh for update.

YouTube localStorage
Caches AJAX requests, search history, user actions, etc.

Sundry Cool Stuff
#1
window.onhashchange / pushState

Build true event-driven, dyanmic sites with solid back
button support and fragement urls.

Sundry Cool Stuff
#2
data-attributes

Store data as attributes within DOM Elements.

<a data-flavour=”chocolate”>Cupcake!</a>

(Accessed via element.dataset.ﬂavour => chocolate)
CODE

Get User Location
(geolocation)

Store Favourite Cities
(localStorage)

Pre-fetch long-term forecast
(Web SQL)

Weather Trends Graphs
(Canvas)

Eye Candy
(CSS3 transitions / animations)

Video Weather Report
(<video>)

Tools of the Trade
Because only nerds build everything from scratch.

Numerous other libraries
processing.js
raphael.js
geolocation (with fallbacks)
jQuery.animate + CSS3 Animations
persistence.js (with fallback to Gears)

And, one more thing:
Enhance
Progressively!

What’s Next?
Hardware access?
Notiﬁcations?
Mind control?

Thank You!
Mohammad Jangda
Vortex Mobile

batmoo@gmail.com
mohammad.jangda@vortexmobile.ca

http://digitalize.ca
@mjangda

HTML5, CSS3, and other fancy buzzwords

Recommended

More Related Content

Viewers also liked (20)

Similar to HTML5, CSS3, and other fancy buzzwords (20)

Recently uploaded (20)

HTML5, CSS3, and other fancy buzzwords

Editor's Notes
