UI DESIGN
WITH HTML5 & CSS3
Shay Howe
@shayhowe
www.shayhowe.com
UI Design with HTML5 & CSS3
SHAY HOWE
www.shayhowe.com – @shayhowe
@shayhowe
HTML5 & CSS3
HTML
Accessibility, Audio & Video Support, Figure Elements,
Forms & Validation, New Elements & Attributes, Revised
Elements & Attributes, Semantics, Structural Elements,
Textual Elements, & more.
CSS
Animations, Backgrounds, Borders, Flexible Grids,
Responsive Design, Rounded Corners, Selectors,
Shadows, Transforms, Transitions, Transparency,
Typography, & more.
@shayhoweUI Design with HTML5 & CSS3
HTML5 & CSS3
HTML
Accessibility, Audio & Video Support, Figure Elements,
Forms & Validation, New Elements & Attributes, Revised
Elements & Attributes, Semantics, Structural Elements,
Textual Elements, & more.
CSS
Animations, Backgrounds, Borders, Flexible Grids,
Responsive Design, Rounded Corners, Selectors,
Shadows, Transforms, Transitions, Transparency,
Typography, & more.
@shayhoweUI Design with HTML5 & CSS3
TOOLTIP
@shayhoweUI Design with HTML5 & CSS3
TOOLTIP MARKUP
<p>
    Beginning  of  a  general  paragraph  of  text...
    <b  class="tooltip">
        tooltip  to  rollover
        <span>
            Text  to  be  displayed  within  the  tooltip.
        </span>
    </b>
    ...ending  of  the  paragraph.
</p>
@shayhoweUI Design with HTML5 & CSS3
SHOW/HIDE TOOLTIP
.tooltip  {
    border-­‐bottom:  1px  solid  #aaa;
}
.tooltip  span  {
    background:  #000;
    background:  rgba(0,  0,  0,  0.8);
    display:  block;
    padding:  10px  12px;
    opacity:  0;
    width:  100%
}
.tooltip:hover  span  {
    opacity:  1;
}
@shayhoweUI Design with HTML5 & CSS3

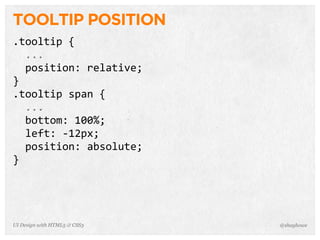

TOOLTIP POSITION
.tooltip  {
    ...
    position:  relative;
}
.tooltip  span  {
    ...
    bottom:  100%;
    left:  -­‐12px;
    position:  absolute;
}
@shayhoweUI Design with HTML5 & CSS3
TOOLTIP POSITION
@shayhoweUI Design with HTML5 & CSS3
TOOLTIP ROUNDED CORNERS
.tooltip  span  {
    ...
    -­‐webkit-­‐border-­‐radius:  4px;
          -­‐moz-­‐border-­‐radius:  4px;
            -­‐ms-­‐border-­‐radius:  4px;
              -­‐o-­‐border-­‐radius:  4px;
                    border-­‐radius:  4px;
}
@shayhoweUI Design with HTML5 & CSS3
TOOLTIP ROUNDED CORNERS
@shayhoweUI Design with HTML5 & CSS3
TOOLTIP SHADOWS
.tooltip  span  {
    ...
    -­‐webkit-­‐box-­‐shadow:  inset  0  1px  3px  #000;
          -­‐moz-­‐box-­‐shadow:  inset  0  1px  3px  #000;
            -­‐ms-­‐box-­‐shadow:  inset  0  1px  3px  #000;
              -­‐o-­‐box-­‐shadow:  inset  0  1px  3px  #000;
                    box-­‐shadow:  inset  0  1px  3px  #000;
    text-­‐shadow:  0  1px  0  #000;
}
@shayhoweUI Design with HTML5 & CSS3
TOOLTIP SHADOWS
@shayhoweUI Design with HTML5 & CSS3
TOOLTIP ARROW
.tooltip  span:after  {
    border-­‐left:  6px  solid  transparent;
    border-­‐right:  6px  solid  transparent;
    border-­‐top:  6px  solid  #000;
    border-­‐top:  6px  solid  rgba(0,  0,  0,  0.8);
    bottom:  -­‐6px;
    content:  "";
    height:  0;
    left:  25%;
    position:  absolute;
    width:  0;
}
@shayhoweUI Design with HTML5 & CSS3
TOOLTIP ARROW
@shayhoweUI Design with HTML5 & CSS3

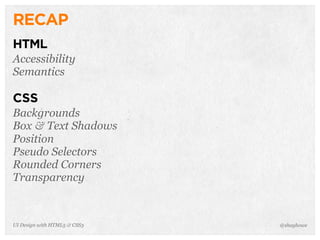

RECAP
HTML
Accessibility
Semantics
CSS
Backgrounds
Box & Text Shadows
Position
Pseudo Selectors
Rounded Corners
Transparency
@shayhoweUI Design with HTML5 & CSS3
DOWNLOADS
@shayhoweUI Design with HTML5 & CSS3
DOWNLOADS MARKUP
<ul>
    <li>
        <a  href="files/pdf-­‐document.pdf">
            PDF  Document
        </a>
    </li>
    <li>
        <a  href="files/word-­‐document.doc">
            Word  Document
        </a>
    </li>
    ...
</ul>
@shayhoweUI Design with HTML5 & CSS3
DOWNLOAD ATTRIBUTE
<ul>
    <li>
        <a  href="files/pdf-­‐document.pdf"  download>
            PDF  Document
        </a>
    </li>
    <li>
        <a  href="files/word-­‐document.doc"
        download="super-­‐unique-­‐file-­‐name.doc">
            Word  Document
        </a>
    </li>
    ...
</ul>
@shayhoweUI Design with HTML5 & CSS3
GENERAL LIST STYLES
ul  {
    border-­‐top:  1px  solid  #ddd;
    list-­‐style:  none;
}
li  {
    border-­‐bottom:  1px  solid  #ddd;
    padding:  10px  0;
}
@shayhoweUI Design with HTML5 & CSS3
GENERAL LIST STYLES
@shayhoweUI Design with HTML5 & CSS3
ADDING ICONS
li  a  {
    padding:  1px  0  1px  22px;
}
li  a[href$=".pdf"]  {
    background:  url("pdf.png")  0  50%  no-­‐repeat;
}
li  a[href$=".doc"]  {
    background:  url("doc.png")  0  50%  no-­‐repeat;
}
li  a[href$=".jpg"]  {
    background:  url("image.png")  0  50%  no-­‐repeat;
}
...
@shayhoweUI Design with HTML5 & CSS3
ADDING ICONS
@shayhoweUI Design with HTML5 & CSS3
ADDING FILE PATHS
li  a[href$=".pdf"]:after,
li  a[href$=".doc"]:after,
li  a[href$=".jpg"]:after,
li  a[href$=".mp3"]:after,
li  a[href$=".mp4"]:after  {
    color:  #aaa;
    content:  "  ("  attr(href)  ")";
    font-­‐size:  11px;
}
@shayhoweUI Design with HTML5 & CSS3
ADDING FILE PATHS
@shayhoweUI Design with HTML5 & CSS3
DOWNLOAD ATTRIBUTE SUPPORT
li  a[href$=".pdf"][download]:not([download=""]):after,
li  a[href$=".doc"][download]:not([download=""]):after,
li  a[href$=".jpg"][download]:not([download=""]):after,
li  a[href$=".mp3"][download]:not([download=""]):after,
li  a[href$=".mp4"][download]:not([download=""]):after  {
    content:  "  ("  attr(download)  ")";
}
@shayhoweUI Design with HTML5 & CSS3
ADDING FILE PATHS
@shayhoweUI Design with HTML5 & CSS3
GETTING RESPONSIVE
@media  only  screen  and  (min-­‐width:  320px)  {
    a[href$=".pdf"]:after,
    a[href$=".doc"]:after,
    a[href$=".jpg"]:after,
    a[href$=".mp3"]:after,
    a[href$=".mp4"]:after  {
        color:  #aaa;
        content:  "  ("  attr(href)  ")";
        font-­‐size:  11px;
    }
    ...
}
@shayhoweUI Design with HTML5 & CSS3
GOING MOBILE
@shayhoweUI Design with HTML5 & CSS3
RECAP
HTML
Accessibility
Download Attribute
Semantics
CSS
Responsive Design
Attribute, Negation, & Pseudo Selectors
@shayhoweUI Design with HTML5 & CSS3
FORMS
@shayhoweUI Design with HTML5 & CSS3
FORM MARKUP
<form>
    <label>
        Departure  City
        <input  type="text"  name="departure-­‐city">
    </label>
    <label>
        Departure  Date  <span>(YYYY-­‐MM-­‐DD)</span>
        <input  type="date"  name="departure-­‐date">
    </label>
    ...
    <button>Search</button>
</form>
@shayhoweUI Design with HTML5 & CSS3
FORM MARKUP
@shayhoweUI Design with HTML5 & CSS3
FORM MARKUP
@shayhoweUI Design with HTML5 & CSS3
INPUT PLACEHOLDERS
<input  type="text"  name="departure-­‐city"
    placeholder="City  or  Airport  Code">
<input  type="date"  name="departure-­‐date"
    placeholder="YYYY-­‐MM-­‐DD">
@shayhoweUI Design with HTML5 & CSS3
INPUT PLACEHOLDERS
@shayhoweUI Design with HTML5 & CSS3
INPUT ASSISTANCE
<input  type="text"  name="departure-­‐city"
    placeholder="City  or  Airport  Code"
    list="cities">
<datalist  id="cities">
    <option  value="Boston  (BOS)">
    <option  value="Chicago  (ORD)">
    <option  value="New  York  (LGA)">
    <option  value="San  Francisco  (SFO)">
    <option  value="Seattle  (SEA)">
</datalist>
@shayhoweUI Design with HTML5 & CSS3
INPUT ASSISTANCE
@shayhoweUI Design with HTML5 & CSS3
REQUIRED INPUTS
<input  type="text"  name="departure-­‐city"
    placeholder="City  or  Airport  Code"
    list="cities"  required>
@shayhoweUI Design with HTML5 & CSS3
REQUIRED INPUTS
<input  type="date"  name="departure-­‐date"
    placeholder="YYYY-­‐MM-­‐DD"  required>
@shayhoweUI Design with HTML5 & CSS3
INPUT PATTERNS
<input  type="date"  name="departure-­‐date"
    placeholder="YYYY-­‐MM-­‐DD"  required
    pattern="[0-­‐9]{4}-­‐(0[1-­‐9]|1[012])-­‐(0[1-­‐9]|
    1[0-­‐9]|2[0-­‐9]|3[01])">
@shayhoweUI Design with HTML5 & CSS3
MIN, MAX, & STEP
<input  type="date"  name="departure-­‐date"
    placeholder="YYYY-­‐MM-­‐DD"  required
    pattern="[0-­‐9]{4}-­‐(0[1-­‐9]|1[012])-­‐(0[1-­‐9]|
    1[0-­‐9]|2[0-­‐9]|3[01])"  min="2012-­‐07-­‐01"
    max="2012-­‐08-­‐31"  step="2">
@shayhoweUI Design with HTML5 & CSS3
VALIDATION
@shayhoweUI Design with HTML5 & CSS3
VALIDATION STYLES
input:required:valid  {
    background:  url("images/tick.png")  98%  50%
        no-­‐repeat;
}
@shayhoweUI Design with HTML5 & CSS3
VALIDATION STYLES
@shayhoweUI Design with HTML5 & CSS3
INPUT STATES
input:hover  {
    border-­‐color:  #a3a3a3;
}
input:focus,  input:active  {
    border:  1px  solid  #7aa3c3;
    box-­‐shadow:
        inset  0  1px  2px  rgba(0,  0,  0,  0.0),
        0  0  0  2px  rgba(86,  145,  185,  0.2);
    outline:  none;
}
@shayhoweUI Design with HTML5 & CSS3
INPUT STATES
Default
Hover
Focus & Active
@shayhoweUI Design with HTML5 & CSS3
INPUT TRANSITIONS
input  {
    ...
    -­‐webkit-­‐transition:
        border  .2s  linear,  box-­‐shadow  .2s  linear;
    -­‐moz-­‐transition:
        border  .2s  linear,  box-­‐shadow  .2s  linear;
    -­‐ms-­‐transition:
        border  .2s  linear,  box-­‐shadow  .2s  linear;
    -­‐o-­‐transition:
        border  .2s  linear,  box-­‐shadow  .2s  linear;
    transition:
        border  .2s  linear,  box-­‐shadow  .2s  linear;
}
@shayhoweUI Design with HTML5 & CSS3
BUTTON GRADIENT
button  {
    ...
    background:  #d5d5d5;
    background:
        -­‐webkit-­‐linear-­‐gradient(top,  #fff,  #ccc);
    background:
        -­‐moz-­‐linear-­‐gradient(top,  #fff,  #ccc);
    background:
        -­‐ms-­‐linear-­‐gradient(top,  #fff,  #ccc);
    background:
        -­‐o-­‐linear-­‐gradient(top,  #fff,  #ccc);
    background:
        linear-­‐gradient(top,  #fff,  #ccc);
}
@shayhoweUI Design with HTML5 & CSS3
BUTTON GRADIENT
@shayhoweUI Design with HTML5 & CSS3
RECAP
HTML
Accessibility & Assistance
Inputs & Validation
Input Attributes
Semantics
CSS
Backgrounds
Borders
Attribute & Pseudo Selectors
Transitions
@shayhoweUI Design with HTML5 & CSS3
QUESTIONS?
Thank you!
@shayhowe
http://shayhowe.com/ui
http://learn.shayhowe.com
@shayhoweUI Design with HTML5 & CSS3

More Related Content

What's hot (19)

PDF
Prototyping w/HTML5 and CSS3
Todd Zaki Warfel

PDF
Intro to html, css & sass
Sean Wolfe

PPTX
Rapid and Responsive - UX to Prototype with Bootstrap
Josh Jeffryes

PDF
Html5 ux london
Todd Zaki Warfel

PDF
Progressive Prototyping w/HTML5, CSS3 and jQuery
Todd Zaki Warfel

PDF
[Worskhop Summits] CSS3 Workshop
Christopher Schmitt

PPTX
Introduction to HTML5 and CSS3 (revised)
Joseph Lewis

PPTX
About Best friends - HTML, CSS and JS
Naga Harish M

PDF
Intro to CSS
Randy Oest II

PPTX
Blog HTML example for IML 295
Evan Hughes

PDF
Fundamental CSS3
Achmad Solichin

PDF
Introduction to CSS3
Doris Chen

PPTX
Cascading Style Sheets
Senthil Kumar

PDF
Layout with CSS
Mike Crabb

KEY
Joomla! Day Chicago 2011 - Templating the right way - Jonathan Shroyer
Steven Pignataro

PDF
Intro to HTML 5 / CSS 3
Tadpole Collective

PPTX
Presentation about html5 css3
Gopi A

PPTX
HTML/CSS Web Blog Example
Michael Bodie

Prototyping w/HTML5 and CSS3
Todd Zaki Warfel

Intro to html, css & sass
Sean Wolfe

Rapid and Responsive - UX to Prototype with Bootstrap
Josh Jeffryes

Html5 ux london
Todd Zaki Warfel

Progressive Prototyping w/HTML5, CSS3 and jQuery
Todd Zaki Warfel

[Worskhop Summits] CSS3 Workshop
Christopher Schmitt

Introduction to HTML5 and CSS3 (revised)
Joseph Lewis

About Best friends - HTML, CSS and JS
Naga Harish M

Intro to CSS
Randy Oest II

Blog HTML example for IML 295
Evan Hughes

Fundamental CSS3
Achmad Solichin

Introduction to CSS3
Doris Chen

Cascading Style Sheets
Senthil Kumar

Layout with CSS
Mike Crabb

Joomla! Day Chicago 2011 - Templating the right way - Jonathan Shroyer
Steven Pignataro

Intro to HTML 5 / CSS 3
Tadpole Collective

Presentation about html5 css3
Gopi A

HTML/CSS Web Blog Example
Michael Bodie


Viewers also liked (20)

PDF
DBFluteを閉じ込めよう
Toshio Takiguchi

PPTX
Spring starterによるSpring Boot Starter
Ryosuke Uchitate

PDF
Responsive Web Design
Adrian Alonso Vega

PDF
ヒューマンリーダブルな CSS 記述法(異次元編):2016年5月13日 CodeGrid 四周年記念パーティー
Yoshiki Hayama

PPTX
最近誰かに「やったほうがいいよ」と伝えた7のこと
Noriaki Kadota

PDF
コーダー白書2016
サトウハルミ

PDF
Building Responsive Layouts
Zoe Gillenwater

PPTX
Angular 2
Travis van der Font

PDF
Spring Boot + Doma + AngularJSで作るERP (LINE Fukuoka Meetup版)
学 松崎

PDF
Grails 3.0先取り!? Spring Boot入門ハンズオン #jggug_boot
Toshiaki Maki

PDF
Grailsでドメイン駆動設計を実践する時の勘所
Takuma Watabiki

PDF
Spring4とSpring Bootで作る次世代Springアプリケーション #jjug #jsug
Toshiaki Maki

PDF
コンポーネント指向と余白の設計
Manabu Yasuda

PDF
Spring Bootで変わる Javaアプリ開発! #jsug
Toshiaki Maki

PDF
Intro to CSS3
Denise Jacobs

PDF
Spring Bootでチャットツールを作りながらWebの仕組みを理解しよう!
Java女子部

PDF
Spring Bootをはじめる時にやるべき10のこと
心 谷本

PDF
Spring Bootハンズオン ~Spring Bootで作る マイクロサービスアーキテクチャ! #jjug_ccc #ccc_r53
Toshiaki Maki

PDF
「実録!となりのJenkins2.0」 - 第7回大阪 / 第9回(東京)Jenkins勉強会 #jenkinsstudy
Kazuhito Miura

DBFluteを閉じ込めよう
Toshio Takiguchi

Spring starterによるSpring Boot Starter
Ryosuke Uchitate

Responsive Web Design
Adrian Alonso Vega

ヒューマンリーダブルな CSS 記述法(異次元編):2016年5月13日 CodeGrid 四周年記念パーティー
Yoshiki Hayama

最近誰かに「やったほうがいいよ」と伝えた7のこと
Noriaki Kadota

コーダー白書2016
サトウハルミ

Building Responsive Layouts
Zoe Gillenwater

Spring Boot + Doma + AngularJSで作るERP (LINE Fukuoka Meetup版)
学 松崎

Grails 3.0先取り!? Spring Boot入門ハンズオン #jggug_boot
Toshiaki Maki

Grailsでドメイン駆動設計を実践する時の勘所
Takuma Watabiki

Spring4とSpring Bootで作る次世代Springアプリケーション #jjug #jsug
Toshiaki Maki

コンポーネント指向と余白の設計
Manabu Yasuda

Spring Bootで変わる Javaアプリ開発! #jsug
Toshiaki Maki

Intro to CSS3
Denise Jacobs

Spring Bootでチャットツールを作りながらWebの仕組みを理解しよう!
Java女子部

Spring Bootをはじめる時にやるべき10のこと
心 谷本

Spring Bootハンズオン ~Spring Bootで作る マイクロサービスアーキテクチャ! #jjug_ccc #ccc_r53
Toshiaki Maki

「実録!となりのJenkins2.0」 - 第7回大阪 / 第9回(東京)Jenkins勉強会 #jenkinsstudy
Kazuhito Miura

Ad

Similar to UI Design with HTML5 & CSS3 (20)

PPTX
Introduction to whats new in css3
Usman Mehmood

PDF
Quality Development with HTML5
Shay Howe

PDF
Implementing Awesome: An HTML5/CSS3 Workshop
Shoshi Roberts

PPT
How To Build An Accessible Web Application - a11yBos
Dennis Lembree

KEY
Post GoGaRuco 2010 hack day at Pivotal Labs : HTML5 & CSS3
shane becker

PDF
IT2255 Web Essentials - Unit II Web Designing
pkaviya

PPTX
HTML5
Brandon Byars

PDF
9781305503922t4-200824144338 (2).pdf
HaboonMohmed

PDF
Web Standards: Fueling Innovation [Web Design World Boston '08]
Aaron Gustafson

PPSX
HTML & XHTML Basics
Hossein Zahed

PPTX
HTML5- The Boosting Era of Web Development
MobilePundits

PDF
Creating Lifelike Designs with CSS3
Meagan Fisher

PDF
HTML 5 Overview
Vangos Pterneas

PDF
Additional Resources for HYPER TEXT MARKUP LANGUAGE
chaukevushaka

KEY
Trendsetting: Web Design and Beyond
Andy Stratton

PDF
HTML 5 and CSS 3
Kannika Kong

PDF
Learn html5
Mostafa Bayomi

PDF
Web Standards: Fueling Innovation [Web Builder 2.0 - 2008]
Aaron Gustafson

PDF
HTML5 for the Flash Developer
DevelopmentArc LLC

PDF
Real solutions, no tricks
Jens Grochtdreis

Introduction to whats new in css3
Usman Mehmood

Quality Development with HTML5
Shay Howe

Implementing Awesome: An HTML5/CSS3 Workshop
Shoshi Roberts

How To Build An Accessible Web Application - a11yBos
Dennis Lembree

Post GoGaRuco 2010 hack day at Pivotal Labs : HTML5 & CSS3
shane becker

IT2255 Web Essentials - Unit II Web Designing
pkaviya

9781305503922t4-200824144338 (2).pdf
HaboonMohmed

Web Standards: Fueling Innovation [Web Design World Boston '08]
Aaron Gustafson

HTML & XHTML Basics
Hossein Zahed

HTML5- The Boosting Era of Web Development
MobilePundits

Creating Lifelike Designs with CSS3
Meagan Fisher

HTML 5 Overview
Vangos Pterneas

Additional Resources for HYPER TEXT MARKUP LANGUAGE
chaukevushaka

Trendsetting: Web Design and Beyond
Andy Stratton

HTML 5 and CSS 3
Kannika Kong

Learn html5
Mostafa Bayomi

Web Standards: Fueling Innovation [Web Builder 2.0 - 2008]
Aaron Gustafson

HTML5 for the Flash Developer
DevelopmentArc LLC

Real solutions, no tricks
Jens Grochtdreis

Ad

More from Shay Howe (8)

PDF
Yes, Designer, You CAN Be a Product Leader
Shay Howe

PDF
Collaboration Practices
Shay Howe

PDF
How Constraints Cultivate Growth
Shay Howe

PDF
Modular HTML & CSS
Shay Howe

PDF
Modular HTML & CSS Turbo Workshop
Shay Howe

PDF
HTML5 Semantics
Shay Howe

PDF
The Web Design Process: A Strategy for Success
Shay Howe

PDF
Writing for the Web: The Right Strategy
Shay Howe

Yes, Designer, You CAN Be a Product Leader
Shay Howe

Collaboration Practices
Shay Howe

How Constraints Cultivate Growth
Shay Howe

Modular HTML & CSS
Shay Howe

Modular HTML & CSS Turbo Workshop
Shay Howe

HTML5 Semantics
Shay Howe

The Web Design Process: A Strategy for Success
Shay Howe

Writing for the Web: The Right Strategy
Shay Howe


Recently uploaded (20)

PPTX
BASIC PRACTICE POWER POINT PRESENTATION 1
rkbasumatary02

PPTX
美国学位证(OSU毕业证书)俄亥俄州立大学毕业证书如何办理
Taqyea

PDF
HISTORY OF Ethiopia and Horn of African
dereab29

PPTX
Turn prompts into brochures - AI Brochure Generator
Venngage AI Infographic Generator

PPTX
原版加拿大亚岗昆学院毕业证(AC毕业证书)如何办理
Taqyea

PPTX
Round 1 Final Assessment-Chelsea Black.pptx
indiapoliticscom

PPTX
Turbomachinery_Presentation.pptx....... introduction and basic
abhisheksabhigowda47

PDF
LESSON LEARNING PLAN Subject: ICT – Computer Systems Servicing (CSS)
sachidanacabel

PPTX
Project Report on Corrosion (1).pptxkkkk
kaushikpkrishna2024

PPTX
Robotic Arm Control System for help of robots you can easily operate things t...
altron1331

PPTX
Design Thinking Infographics by Slidego.pptx
JuanAntonioAguirreAb2

PDF
Guide to Understanding Hailey Welch's Wealth
arslantaj725

PPT
Seminar FRP Materials.strenthening using frp
MohamedAttia601252

PDF
M03-operating instructions in microprocessor.pdf
CherinetTekalign

PPTX
FINAL.......... april 02-2025 april.pptx
MAACJudymaeM

PDF
The Third Place revolution: Designing for community in a fragmented world
jgadsbypeet8321

PPTX
Untitled presentation on support system for Btech
rishikrajsmhs

PDF
Madrina Brewery - Label design, character design
impybla

PPTX
Iot module of the module 4 is the very beautiful
prodbythre

PDF
inbound6040378307114221962.pdf.dowload...
kayesetinasan

BASIC PRACTICE POWER POINT PRESENTATION 1
rkbasumatary02

美国学位证(OSU毕业证书)俄亥俄州立大学毕业证书如何办理
Taqyea

HISTORY OF Ethiopia and Horn of African
dereab29

Turn prompts into brochures - AI Brochure Generator
Venngage AI Infographic Generator

原版加拿大亚岗昆学院毕业证(AC毕业证书)如何办理
Taqyea

Round 1 Final Assessment-Chelsea Black.pptx
indiapoliticscom

Turbomachinery_Presentation.pptx....... introduction and basic
abhisheksabhigowda47

LESSON LEARNING PLAN Subject: ICT – Computer Systems Servicing (CSS)
sachidanacabel

Project Report on Corrosion (1).pptxkkkk
kaushikpkrishna2024

Robotic Arm Control System for help of robots you can easily operate things t...
altron1331

Design Thinking Infographics by Slidego.pptx
JuanAntonioAguirreAb2

Guide to Understanding Hailey Welch's Wealth
arslantaj725

Seminar FRP Materials.strenthening using frp
MohamedAttia601252

M03-operating instructions in microprocessor.pdf
CherinetTekalign

FINAL.......... april 02-2025 april.pptx
MAACJudymaeM

The Third Place revolution: Designing for community in a fragmented world
jgadsbypeet8321

Untitled presentation on support system for Btech
rishikrajsmhs

Madrina Brewery - Label design, character design
impybla

Iot module of the module 4 is the very beautiful
prodbythre

inbound6040378307114221962.pdf.dowload...
kayesetinasan


UI Design with HTML5 & CSS3

  • 1. UI DESIGN WITH HTML5 & CSS3 Shay Howe @shayhowe www.shayhowe.com
  • 2. UI Design with HTML5 & CSS3 SHAY HOWE www.shayhowe.com – @shayhowe @shayhowe
  • 3. HTML5 & CSS3 HTML Accessibility, Audio & Video Support, Figure Elements, Forms & Validation, New Elements & Attributes, Revised Elements & Attributes, Semantics, Structural Elements, Textual Elements, & more. CSS Animations, Backgrounds, Borders, Flexible Grids, Responsive Design, Rounded Corners, Selectors, Shadows, Transforms, Transitions, Transparency, Typography, & more. @shayhoweUI Design with HTML5 & CSS3
  • 4. HTML5 & CSS3 HTML Accessibility, Audio & Video Support, Figure Elements, Forms & Validation, New Elements & Attributes, Revised Elements & Attributes, Semantics, Structural Elements, Textual Elements, & more. CSS Animations, Backgrounds, Borders, Flexible Grids, Responsive Design, Rounded Corners, Selectors, Shadows, Transforms, Transitions, Transparency, Typography, & more. @shayhoweUI Design with HTML5 & CSS3
  • 6. TOOLTIP MARKUP <p>    Beginning  of  a  general  paragraph  of  text...    <b  class="tooltip">        tooltip  to  rollover        <span>            Text  to  be  displayed  within  the  tooltip.        </span>    </b>    ...ending  of  the  paragraph. </p> @shayhoweUI Design with HTML5 & CSS3
  • 7. SHOW/HIDE TOOLTIP .tooltip  {    border-­‐bottom:  1px  solid  #aaa; } .tooltip  span  {    background:  #000;    background:  rgba(0,  0,  0,  0.8);    display:  block;    padding:  10px  12px;    opacity:  0;    width:  100% } .tooltip:hover  span  {    opacity:  1; } @shayhoweUI Design with HTML5 & CSS3
  • 8. TOOLTIP POSITION .tooltip  {    ...    position:  relative; } .tooltip  span  {    ...    bottom:  100%;    left:  -­‐12px;    position:  absolute; } @shayhoweUI Design with HTML5 & CSS3
  • 10. TOOLTIP ROUNDED CORNERS .tooltip  span  {    ...    -­‐webkit-­‐border-­‐radius:  4px;          -­‐moz-­‐border-­‐radius:  4px;            -­‐ms-­‐border-­‐radius:  4px;              -­‐o-­‐border-­‐radius:  4px;                    border-­‐radius:  4px; } @shayhoweUI Design with HTML5 & CSS3
  • 11. TOOLTIP ROUNDED CORNERS @shayhoweUI Design with HTML5 & CSS3
  • 12. TOOLTIP SHADOWS .tooltip  span  {    ...    -­‐webkit-­‐box-­‐shadow:  inset  0  1px  3px  #000;          -­‐moz-­‐box-­‐shadow:  inset  0  1px  3px  #000;            -­‐ms-­‐box-­‐shadow:  inset  0  1px  3px  #000;              -­‐o-­‐box-­‐shadow:  inset  0  1px  3px  #000;                    box-­‐shadow:  inset  0  1px  3px  #000;    text-­‐shadow:  0  1px  0  #000; } @shayhoweUI Design with HTML5 & CSS3
  • 14. TOOLTIP ARROW .tooltip  span:after  {    border-­‐left:  6px  solid  transparent;    border-­‐right:  6px  solid  transparent;    border-­‐top:  6px  solid  #000;    border-­‐top:  6px  solid  rgba(0,  0,  0,  0.8);    bottom:  -­‐6px;    content:  "";    height:  0;    left:  25%;    position:  absolute;    width:  0; } @shayhoweUI Design with HTML5 & CSS3
  • 15. TOOLTIP ARROW @shayhoweUI Design with HTML5 & CSS3
  • 16. RECAP HTML Accessibility Semantics CSS Backgrounds Box & Text Shadows Position Pseudo Selectors Rounded Corners Transparency @shayhoweUI Design with HTML5 & CSS3
  • 18. DOWNLOADS MARKUP <ul>    <li>        <a  href="files/pdf-­‐document.pdf">            PDF  Document        </a>    </li>    <li>        <a  href="files/word-­‐document.doc">            Word  Document        </a>    </li>    ... </ul> @shayhoweUI Design with HTML5 & CSS3
  • 19. DOWNLOAD ATTRIBUTE <ul>    <li>        <a  href="files/pdf-­‐document.pdf"  download>            PDF  Document        </a>    </li>    <li>        <a  href="files/word-­‐document.doc"          download="super-­‐unique-­‐file-­‐name.doc">            Word  Document        </a>    </li>    ... </ul> @shayhoweUI Design with HTML5 & CSS3
  • 20. GENERAL LIST STYLES ul  {    border-­‐top:  1px  solid  #ddd;    list-­‐style:  none; } li  {    border-­‐bottom:  1px  solid  #ddd;    padding:  10px  0; } @shayhoweUI Design with HTML5 & CSS3
  • 21. GENERAL LIST STYLES @shayhoweUI Design with HTML5 & CSS3
  • 22. ADDING ICONS li  a  {    padding:  1px  0  1px  22px; } li  a[href$=".pdf"]  {    background:  url("pdf.png")  0  50%  no-­‐repeat; } li  a[href$=".doc"]  {    background:  url("doc.png")  0  50%  no-­‐repeat; } li  a[href$=".jpg"]  {    background:  url("image.png")  0  50%  no-­‐repeat; } ... @shayhoweUI Design with HTML5 & CSS3
  • 23. ADDING ICONS @shayhoweUI Design with HTML5 & CSS3
  • 24. ADDING FILE PATHS li  a[href$=".pdf"]:after, li  a[href$=".doc"]:after, li  a[href$=".jpg"]:after, li  a[href$=".mp3"]:after, li  a[href$=".mp4"]:after  {    color:  #aaa;    content:  "  ("  attr(href)  ")";    font-­‐size:  11px; } @shayhoweUI Design with HTML5 & CSS3
  • 25. ADDING FILE PATHS @shayhoweUI Design with HTML5 & CSS3
  • 26. DOWNLOAD ATTRIBUTE SUPPORT li  a[href$=".pdf"][download]:not([download=""]):after, li  a[href$=".doc"][download]:not([download=""]):after, li  a[href$=".jpg"][download]:not([download=""]):after, li  a[href$=".mp3"][download]:not([download=""]):after, li  a[href$=".mp4"][download]:not([download=""]):after  {    content:  "  ("  attr(download)  ")"; } @shayhoweUI Design with HTML5 & CSS3
  • 27. ADDING FILE PATHS @shayhoweUI Design with HTML5 & CSS3
  • 28. GETTING RESPONSIVE @media  only  screen  and  (min-­‐width:  320px)  {    a[href$=".pdf"]:after,    a[href$=".doc"]:after,    a[href$=".jpg"]:after,    a[href$=".mp3"]:after,    a[href$=".mp4"]:after  {        color:  #aaa;        content:  "  ("  attr(href)  ")";        font-­‐size:  11px;    }    ... } @shayhoweUI Design with HTML5 & CSS3
  • 29. GOING MOBILE @shayhoweUI Design with HTML5 & CSS3
  • 30. RECAP HTML Accessibility Download Attribute Semantics CSS Responsive Design Attribute, Negation, & Pseudo Selectors @shayhoweUI Design with HTML5 & CSS3
  • 32. FORM MARKUP <form>    <label>        Departure  City        <input  type="text"  name="departure-­‐city">    </label>    <label>        Departure  Date  <span>(YYYY-­‐MM-­‐DD)</span>        <input  type="date"  name="departure-­‐date">    </label>    ...    <button>Search</button> </form> @shayhoweUI Design with HTML5 & CSS3
  • 33. FORM MARKUP @shayhoweUI Design with HTML5 & CSS3
  • 34. FORM MARKUP @shayhoweUI Design with HTML5 & CSS3
  • 35. INPUT PLACEHOLDERS <input  type="text"  name="departure-­‐city"    placeholder="City  or  Airport  Code"> <input  type="date"  name="departure-­‐date"    placeholder="YYYY-­‐MM-­‐DD"> @shayhoweUI Design with HTML5 & CSS3
  • 37. INPUT ASSISTANCE <input  type="text"  name="departure-­‐city"    placeholder="City  or  Airport  Code"      list="cities"> <datalist  id="cities">    <option  value="Boston  (BOS)">    <option  value="Chicago  (ORD)">    <option  value="New  York  (LGA)">    <option  value="San  Francisco  (SFO)">    <option  value="Seattle  (SEA)"> </datalist> @shayhoweUI Design with HTML5 & CSS3
  • 39. REQUIRED INPUTS <input  type="text"  name="departure-­‐city"    placeholder="City  or  Airport  Code"      list="cities"  required> @shayhoweUI Design with HTML5 & CSS3
  • 40. REQUIRED INPUTS <input  type="date"  name="departure-­‐date"    placeholder="YYYY-­‐MM-­‐DD"  required> @shayhoweUI Design with HTML5 & CSS3
  • 41. INPUT PATTERNS <input  type="date"  name="departure-­‐date"    placeholder="YYYY-­‐MM-­‐DD"  required    pattern="[0-­‐9]{4}-­‐(0[1-­‐9]|1[012])-­‐(0[1-­‐9]|    1[0-­‐9]|2[0-­‐9]|3[01])"> @shayhoweUI Design with HTML5 & CSS3
  • 42. MIN, MAX, & STEP <input  type="date"  name="departure-­‐date"    placeholder="YYYY-­‐MM-­‐DD"  required    pattern="[0-­‐9]{4}-­‐(0[1-­‐9]|1[012])-­‐(0[1-­‐9]|    1[0-­‐9]|2[0-­‐9]|3[01])"  min="2012-­‐07-­‐01"      max="2012-­‐08-­‐31"  step="2"> @shayhoweUI Design with HTML5 & CSS3
  • 44. VALIDATION STYLES input:required:valid  {    background:  url("images/tick.png")  98%  50%          no-­‐repeat; } @shayhoweUI Design with HTML5 & CSS3
  • 46. INPUT STATES input:hover  {    border-­‐color:  #a3a3a3; } input:focus,  input:active  {    border:  1px  solid  #7aa3c3;    box-­‐shadow:        inset  0  1px  2px  rgba(0,  0,  0,  0.0),        0  0  0  2px  rgba(86,  145,  185,  0.2);    outline:  none; } @shayhoweUI Design with HTML5 & CSS3
  • 47. INPUT STATES Default Hover Focus & Active @shayhoweUI Design with HTML5 & CSS3
  • 48. INPUT TRANSITIONS input  {    ...    -­‐webkit-­‐transition:        border  .2s  linear,  box-­‐shadow  .2s  linear;    -­‐moz-­‐transition:        border  .2s  linear,  box-­‐shadow  .2s  linear;    -­‐ms-­‐transition:        border  .2s  linear,  box-­‐shadow  .2s  linear;    -­‐o-­‐transition:        border  .2s  linear,  box-­‐shadow  .2s  linear;    transition:        border  .2s  linear,  box-­‐shadow  .2s  linear; } @shayhoweUI Design with HTML5 & CSS3
  • 49. BUTTON GRADIENT button  {    ...    background:  #d5d5d5;    background:        -­‐webkit-­‐linear-­‐gradient(top,  #fff,  #ccc);    background:        -­‐moz-­‐linear-­‐gradient(top,  #fff,  #ccc);    background:        -­‐ms-­‐linear-­‐gradient(top,  #fff,  #ccc);    background:        -­‐o-­‐linear-­‐gradient(top,  #fff,  #ccc);    background:        linear-­‐gradient(top,  #fff,  #ccc); } @shayhoweUI Design with HTML5 & CSS3
  • 51. RECAP HTML Accessibility & Assistance Inputs & Validation Input Attributes Semantics CSS Backgrounds Borders Attribute & Pseudo Selectors Transitions @shayhoweUI Design with HTML5 & CSS3
