Effective and Efficient Design with CSS3

Effective & Efficient
Design with CSS3
September 23, 2010
Web Directions USA
Zoe Mickley Gillenwater
@ zomigi

1

What I do
Books Web
now Flexible Web Design: Freelance graphic
Creating Liquid and Elastic designer and web
Layouts with CSS developer
www.flexiblewebbook.com CSS consultant
Member of Adobe
soon Stunning CSS3: Task Force for WaSP
A Project-based Guide to
the Latest in CSS
www.stunningcss3.com

2

What is CSS3?
See modules at
www.w3.org/Style/
CSS/current-work

3

Use the parts of CSS3 that:
✔ have generally stable syntax.
✔ have good support.
✔ don't harm non-supporting browsers by
their lack.

5

Progressive enhancement

6

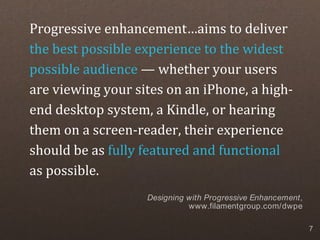

Progressive enhancement…aims to deliver
the best possible experience to the widest
possible audience — whether your users
are viewing your sites on an iPhone, a high-
end desktop system, a Kindle, or hearing
them on a screen-reader, their experience
should be as fully featured and functional
as possible.
Designing with Progressive Enhancement,
www.filamentgroup.com/dwpe

7

A few of the things
you can use...

Photo by Kristin Roach, www.flickr.com/photos/kristinroach/3995676135 8

Backgrounds and Borders Module
border-radius

www.blueskyresumes.com, http://blog.gesteves.com,
9
http://nicolasgallagher.com/demo/pure-css-speech-bubbles/bubbles.html

Backgrounds and Borders Module
box-shadow

www.fredssoldater.se, http://chris-armstrong.com, http://girliemac.com/sandbox/button.html,
10
http://weston.ruter.net/2009/06/15/multiple-borders-via-css-box-shadow

Text Module
text-shadow

http://desandro.com, http://chunkytheme.tumblr.com, http://safe.tumblr.com/theme/preview/5932,
11
http://sixrevisions.com/css/how-to-create-inset-typography-with-css3, , www.time2project.com

Image Values Module
Gradients

http://designindevelopment.com/demos/grooveshark, www.broken-links.com/tests/studio_effect,
12
www.yummly.com, http://nimbupani.com/sexy-css3-buttons.html

Color Module
RGBA and HSLA

http://24ways.org, http://css-tricks.com/text-blocks-over-image,
13
www.marcofolio.net/css/sweet_tabbed_navigation_using_css3.html

Fonts Module
@ font-face

www.blueskyresumes.com, www.jasonsantamaria.com, http://lostworldsfairs.com/atlantis,
14
www.fredssoldater.se

2D Transforms Module
Transforms

http://butterlabel.com, http://forabeautifulweb.com, http://girliemac.com/sandbox/dock.html, 15
http://lab.simurai.com/css/tilt-shift

Benefits of CSS3 (besides looking cool)

Decrease Increase
development time usability
maintenance time accessibility
page loading time adaptability across devices
search engine placement

16

Reduced development and
maintenance time
• Less images, Flash, JavaScript
• Streamlined markup

17

Increased page performance
• Smaller file sizes
• Fewer HTTP requests

Reducing the number of HTTP requests…is
the most important guideline for improving
performance for first time visitors.
Yahoo! Exceptional Performance Team,
http://developer.yahoo.com/performance/rules.html

18

Better search engine
placement
• Google uses speed as ranking factor
• Real text instead of image or Flash text

19

Increased usability
• Real text
• Optimized styles based on device
capabilities

20

Real-world example

21

Before CSS3

FF 3.6 IE 8 IE 6
HTTP requests 36 37 47
Loading time seconds 1.5 1.3 3

22

The nav bar
Before: 8 images inactive

hovered

current page indicator

23

The nav bar
Before: 8 images inactive

hovered

current page indicator

After: 1 image

24

Before CSS3, optimized

FF 3.6 IE 8 IE 6
Loading time seconds 1.3 1.15 2
decrease 13% 11% 33%

25

After CSS3

FF 3.6 IE 8 IE 6
Loading time seconds 1.1 1 1.5
decrease 15% 13% 25%

26

Wrapping tabs

Larger text + narrow window =
ugly Amazon double-row tabs from 2000

30

Media query for nav bar
@media all and (max-width:52em) { English translation:
#swoosh { display: none; } Up to a maximum
#mainnav { padding: 8px 0; }
width of 52 ems, use
#mainnav ul { margin: 0; }
#mainnav li {
these styles. Once you
margin-left: 12px; get past 52 ems, use
padding: 0; the regular styles.
border: none;
-moz-border-radius: 0;
-webkit-border-radius: 0;
border-radius: 0;
background: none; }
#mainnav li:hover { background: none; }
}
31

Media queries for mobile
min-width
max-width
device-width
min-device-width
max-device-width
orientation
-webkit-min-device-pixel-ratio

32

Targeting iPhone, Android, etc.
@media screen and
portrait & landscape (min-width: 320px) and

(max-width: 480px)
portrait & landscape (min-device-width: 320px) and
(max-device-width: 480px)
portrait & landscape (max-device-width: 480px)
landscape only (min-width: 321px)
portrait only (max-width: 320px)

33

Targeting iPad
@media screen and
portrait & landscape (min-device-width: 768px) and
landscape only (min-width: 769px)
landscape only (min-device-width: 481px) and
and (orientation: landscape)
portrait only (min-device-width: 481px) and
and (orientation: portrait)
34

Viewport meta tag
Forces mobile devices to scale viewport to
actual device width

<meta name="viewport"
content="width=device-width,
minimum-scale=1.0,
maximum-scale=1.0">

35

Learn more
Download slides, get links:
www.zomigi.com/blog/web-directions-usa/

Book:
www.stunningcss3.com

@ zomigi
design@ zomigi.com
www.zomigi.com
36

Questions?

@ zomigi
design@ zomigi.com
www.zomigi.com
37
