Giáo trình học Html5/Css3

CSS3
UP TO SPEED ON
HTML5 &
REFRESH DC | M. JACKSON WILKINSON & JASON GARBER | JULY 16, 2009
</TITLE>
Sunday, July 19, 2009

THE INTRO

M.JACKSONWILKINSONYour Humble Refresh DC Organizer
That’s
“Michael”

JASONGARBERRefresh DC Organizer Emeritus

WEB STANDARDS
A Very Brief History of

XHTML1
2001-2006
CSS2.1
Content Presentation

WHATWG
2004-2007
Web Hypertext Application
Technology Working Group

W3C
2007-PRESENT
World Wide Web
Consortium

HTML5
2007-PRESENT
CSS3
Content Presentation

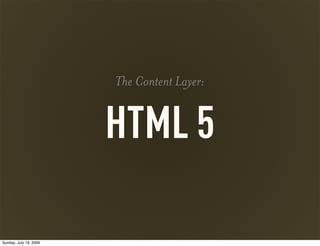

HTML 5
The Content Layer:

NEWELEMENTS

structuralelements
BrowserSupport:structuralelements
Provides new semantic vocabulary
for parts of a page previously
served by DIVs with ID and Class
attributes.
IE requires some workarounds
using JavaScript to make these
elements work.
HEADER
ARTICLE
FOOTER
ASIDE
NAV
SECTION

figure
BrowserSupport:figure
Allows for associating captions
with embedded content, including
videos, audio, pullquotes, or
images.
FIGURE
LEGEND
CONTENT (IMG, Q, VIDEO, ETC.)

audio&video
BrowserSupport:audio&video
Allows for associating captions
with embedded content, including
videos, audio, or images.
Opera, Chrome, and Firefox all
support the Ogg Theora video
format natively, while Safari and
Chrome support H.264.
<video src="test.ogg" autoplay="autoplay"
controls="controls">
Your browser does not support the video
element. This could also include object and
embed codes for legacy browsers.
</video>

OTHERELEMENTS
METER Contained content is a measurement, like length.
PROGRESS
TIME
COMMAND
DATAGRID
OUTPUT
RUBY
Contains current process toward a goal, like a percentage.
Time
Represents something a command a user may execute.
Represents data. Non-tabular or otherwise.
Displays the output of a program or process.
Allows input of rubi/ruby annotations for Asian languages.

NEWFORM
CONTROLS

FORMCONTROLS
DATETIME Allows input of a date and a time.
DATETIME-LOCAL
NUMBER
RANGE
EMAIL
URL
COLOR
Allows input of a date and a time, in local time.
Allows input of a number.
Input is verified to be within a range.
Confirms the input to be a valid email.
Ensures input is a valid URL.
Provides a mechanism for the user to input an RGB color.

DOCSTRUCTURE

HTML5doctype
BrowserSupport:HTML5doctype
The HTML 5 doctype is way
easier than any other doctype.
Evar.
Just type the parts you remember,
and you’ll probably be right.
<!DOCTYPE html>

HTML5&XHTML5
BrowserSupport:HTML5doctype
HTML 5 supports the standard
HTML syntax (formerly SGML),
but also allows for an XML-based
variant XHTML5.
Since it’s XML, XHTML should
be served as application/xml or
application/xhtml+xml. Warning:
this means browsers freak if there’s
an error.
<html>
vs.
<html xmlns="http://
www.w3.org/1999/xhtml">

Block-LevelLinks
BrowserSupport:Block-levelLinks
You can now wrap links around
block-level elements, rather than
having to create links around
every element inside the block
element.
This is useful for lists of articles
that include multiple elements,
callouts with a single action, etc.
<li>
<a href="page.html">
<img src="pic.jpg">
<h3>Title</h3>
<p>Text</p>
</a>
</li>

Drag&DropAPI
BrowserSupport:DragandDropAPI
Allows objects (images and links,
by default) to be dragged and then
dropped onto a target.
The target is enabled by canceling
the ‘dragover’ (for sane browsers)
or ‘dragenter’ (for IE) events for
the drop target. Then listen for a
‘drop’ event which contains a
‘dataTransfer’ object with info.
+

getElementsByClassName
BrowserSupport:getElementsByClassName
Works just like getElementsById,
but selects an array of all elements
based on a shared class name.
No more varied custom functions
to make this happen, and
performance is significantly better.

Cross-DocumentMessaging
BrowserSupport:Cross-DocMessaging
This allows non-hostile documents
on different domains to simply
communicate with each other.
The sending document can call
postMessage() on the window
object of the receiving document,
while the receiving document listens
for a ‘message’ event.
MAIN DOCUMENT
FOREIGN
IFRAME

SimpleClientStorage
BrowserSupport:SimpleClientStorage
The sessionStorage DOM attribute
stores session data for a single
window, like cookies on crack.
The localStorage DOM attribute
allows each site to store megabytes
of data across sessions to improve
performance.
Both methods store only strings.
<input
type="checkbox"
onchange="
localStorage.insurance=checked
"
/>

StructuredClientStorage
BrowserSupport:StructuredClientStorage
HTML 5’s Web Storage module
provides an SQL server within the
client, accessible using Javascript. It
uses fairly standard SQL queries
for both reading and writing.
There’s a lot to be explained about
the built-in SQL server, so go
check out the docs for more
information.
tx.executeSql(
‘SELECT * FROM Notes’,
[],
function(tx, rs) {
for(var i = 0;
i < rs.rows.length; i++) {
renderNote(rs.rows[i]);
}

OfflineApplicationCaching
BrowserSupport:OfflineApplicationCaching
Allow the client to refer directly to
its cache, authoritatively, for
certain resources, even if the
browser is offline.
Resources listed in the “network”
section are never cached.
<html manifest=”/cache.manifest”>
CACHE MANIFEST
index.html
help.html
style/default.css
images/logo.png
images/backgound.png
NETWORK:
server.cgi

Canvas
BrowserSupport:canvas
Provides an API for drawing
directly in the browser window,
using instructions that define
vector-based shapes and lines.
This allows SVG-like graphics to be
created on the fly in the browser,
with fallback content (like Flash?)
provided to legacy browsers.
<canvas id="canvas" width="150" height="150">
fallback content
</canvas>
function draw() {
var canvas = document.getElementById("canvas");
if (canvas.getContext) {
var ctx = canvas.getContext("2d");
ctx.fillStyle = "rgb(200,0,0)";
ctx.fillRect (10, 10, 55, 50);
ctx.fillStyle = "rgba(0, 0, 200, 0.5)";
ctx.fillRect (30, 30, 55, 50);
}
}

CSS 3
The Presentation Layer:

opacity
BrowserSupport:opacity
Adjusts the opacity of the selected
element’s presentation on screen.
Takes values between 0.0 (fully
transparent) and 1.0 (fully
opaque)
div { color: #f00; opacity: 1.0; }
div { color: #f00; opacity: 0.5; }

RGBAColor
BrowserSupport:RGBAcolor
Like RGB color definitions, but
allows a fourth field, defining the
alpha value of the color being
applied.
Like opacity, the alpha value is
between 0.0 (fully transparent)
and 1.0 (fully opaque).
div { color: rgb(0,255,0); }
div { color: rgba(0,255,0,0.5); }

HSL/AColor
BrowserSupport:HSL/Acolor
HSL color definitions accept three
arguments: hue is a degree on a
color wheel (0-360), saturation
is a percentage, and lightness is a
percentage.
HSLA is like HSL color, but
allows a fourth field, defining the
alpha value of the color being
applied. See RGBA.
div { color: hsl(240,50%,50%); }
div { color: hsla(240,50%,50%,0.5); }

BACKGROUNDS

background-size
BrowserSupport:background-size
Defines the size at which the
browser should display the specified
background image. Accepts all
normal size definitions as width
followed by height.
In shorthand, this appears after
background-position values.
div { background-size: 100px 65px; }
div { background-size: 400px 65px; }

background: url(body-top.png) top left no-repeat,
url(body-bottom.png) bottom left no-repeat,
url(body-middle.png) left repeat-y;
background-image
BrowserSupport:background-image
Allows for multiple images to be
specified. The first image specified
is layered closest to the top of the
screen, and subsequent images are
layered beneath.

border: 5px solid #000;
border-color: #000 transparent transparent #000;
border-color
BrowserSupport:border-color
Allows for multiple border colors
to be specified, one pixel at a time.
The last specified color is repeated
if necessary.
This cannot be used in the border
shorthand syntax.

border-image: url(button.png) 0 12 0 12 stretch
stretch;
border-image
BrowserSupport:border-image
Allows the border to be represented
by an image, by defining which
parts of the image should be used
for the edges, and which should be
repeated in the main part of the
element.
This is difficult to represent
completely, so go look it up.
border-image: url(border.png) 27 27 27 27 round
round;

border-radius: 10px;
border-radius
BrowserSupport:border-radius
Curves the corners of the border
using the radius given, often in
pixels. This can be given to all
corners, or only to individual
corners as specified.
Firefox refers to individual corners
like “border-radius-topright”
while Safari (correctly) refers to it
as “border-top-right-radius”.
border-top-right-radius: 10px;

box-shadow: 10px 10px 10px #333;
box-shadow
BrowserSupport:box-shadow
Creates a drop shadow beneath the
selected element.
The first argument is the horizontal
offset, the second is the vertical
offset, the third is the blur radius,
and the final argument is the color
to be used as the shadow.

text-overflow: ellipsis;
text-overflow
BrowserSupport:text-overflow
If text overflows the available
space, the text-overflow property
defines what happens.
The value “ellipsis” appends an
ellipsis character at the overflow
point.
Lorem ipsum dolor sit amet, consectetur adipiscing
elit. Nam purus nunc, auctor et accumsan ut, aliquam
vel leo. Quisque dignissim tincidunt rhoncus. Duis
sed velit rutrum lorem rutrum faucibus. Nam tincidunt
eros at arcu vestibulum egestas. Donec fringilla,
turpis in auctor luctus, orci orci vestibulum lacus,
a tristique felis erat non diam. Morbi dolor massa,
elementum ac iaculis quis, iaculis sed neque. Aliquam
erat volutpat. Aliquam porttitor auctor massa sit
amet ultrices. Maecenas quis nunc nibh, sit amet
hendrerit leo. Donec a massa eget velit consectetur
fermentum aliquet et eros. Vestibulum volutpat, est
vitae dapibus congue, nibh augue vehicula lacutus es…

text-shadow: 10px 10px 10px #333;
text-shadow
BrowserSupport:text-shadow
Creates a drop shadow beneath the
selected text.
The first argument is the horizontal
offset, the second is the vertical
offset, the third is the blur radius,
and the final argument is the color
to be used as the shadow. Multiple
shadow definitions may be
separated using commas.
This is sample text.

column-width: 200px;
column-gap: 20px;
column-width&column-gap
BrowserSupport:column-width/column-gap
Breaks flowing text into multiple
columns, based on the width of the
container. Column width defines
the width of each column, and
column-gap defines the gap
between columns.
Column-count can be specified in
lieu of column-width.
Lorem ipsum dolor sit amet, consectetur
adipiscing elit. Nam purus nunc, auctor et
accumsan ut, aliquam vel leo. Quisque
dignissim tincidunt rhoncus. Duis sed velit
rutrum lorem rutrum faucibus. Nam tincidunt
eros at arcu vestibulum egestas. Donec
fringilla, turpis in auctor luctus, orci orci
vestibulum lacus, a tristique felis erat non
diam. Morbi dolor massa, elementum ac
iaculis quis, iaculis sed neque. Aliquam erat
volutpat. Aliquam porttitor auctor massa sit
amet ultrices. Maecenas quis nunc nibh, sit
amet hendrerit leo. Donec a massa eget velit
consectetur fermentum aliquet et eros.
Vestibulum volutpat, est vitae dapibus
congue, nibh augue vehicula lacus, vel
semper dolor odio in libero. Curabitur vitae
sem consequat purus fermentum tincidunt.
Donec vestibulum felis ut metus ultrices a
vulputate felis rhoncus eum ivolonortis
quisque dignissim tincidunt rhoncus. Duis sed
velit rutrum lorem rutrum faucibus. Nam
tincidunt eros at arcu vestibulum egestas.
Donec fringilla, turpis in auctor luctus, orci
orci vestibulum lacus, a tristique felis erat non
diam. Morbi dolor massa, elementum ac
iaculis quis, iaculis sed neque. Aliquam erat
volutpat. Aliquam porttitor auctor massa sit
amet ultrices. Maecenas quis nunc nibh, sit
amet hendrerit leo. Donec a massa eget velit
consectetur fermentum aliquet et eros.
Vestibulum volutpat, est vitae dapibus
congue, nibh augue vehicula lacus, vel
semper dolor odio in libero. Curabitur vitae
sem consequat purus fermentum tincidunt.
Donec vestibulum felis ut metus ultrices a
vulputate felis rhoncus eum ivolonortis

@font-face {
font-family: Helvy;
src: local("Helvetica Neue Bold"),
local("HelveticaNeue-Bold"),
url(MgOpenModernaBold.ttf);
font-weight: bold;
}
p.specialFont { font-family: Helvy, sans-serif; }
@font-face
BrowserSupport:column-width/column-gap
Allows a font file to be associated
with a font name for later use in
font-family declarations.
IE supports only .eot Embedded
OpenType files, while the other
browsers support any TTF and
OTF font files.

TRANSFORMATION

rotate
BrowserSupport:rotate
Rotates the selected element at the
defined angle, defined in degrees.
The rotation doesn’t affect layout,
and elements that are transformed
are treated similarly to
position:relative.
transform: rotate(30deg);

scale
BrowserSupport:scale
Scales the element in question
based on the specified unit-less
numbers given for the X and Y
axes. If only one number is given, it
is applied to both axes.
transform: scale(0.5,2.0);

skew
BrowserSupport:scale
Skews the element around the X
and Y axes by the specified angles,
in degrees. If it’s only one number,
the Y axis is assumed to be zero. transform: skew(-30deg);

translate
BrowserSupport:translate
Moves the object along each axis by
the length specified. The unit can
be anything accepted as a length in
CSS, such as px, em, percentages,
etc.
transform: translate(30px, 0);

3DTRANSFORMATIONS
PERSPECTIVE The distance, in pixels, of the z=0 plane from the viewer.
MATRIX3D
ROTATE3D
SCALE3D
TRANSLATE3D
Allows creation of a 3d transformation matrix.
Rotate the matched element in three dimensions.
Performs a three-dimensional scale operation.
Allows the matched element to be moved along three axes.

BROWSERPREFIXES

FIREFOX:
SAFARI:
OPERA:
IE:
-moz-box-shadow:
-webkit-box-shadow:
-o-box-shadow:
-ms-box-shadow:

READY YET?
When is it Time to Use These?

THEFUTURE

IMPLEMENTATION
trumps
SPECIFICATION

PROGRESSFUL
DEGRAHANCEMENT™

BUSINESSAND
USERGOALS
In the end, be mindful of

CRITICISM
A Healthy Dose of

MORERESOURCES
HTML5Doctor http://html5doctor.com/
HTML5Spec
ALAArticle
BruceLawson
YourPresenters
http://dev.w3.org/html5/spec/Overview.html
http://www.alistapart.com/articles/previewofhtml5
http://www.brucelawson.co.uk/category/
accessibility-web-standards/html5/
Feel free to follow up with Jackson & Jason

SpeakerRate: spkr8.com/t/1250
Get in Touch!
Twitter: @whafro & @jgarber

Giáo trình học Html5/Css3

Recommended

More Related Content

Viewers also liked (13)

Similar to Giáo trình học Html5/Css3 (20)

More from Ho Ngoc Tan (6)

Recently uploaded (20)

Giáo trình học Html5/Css3
